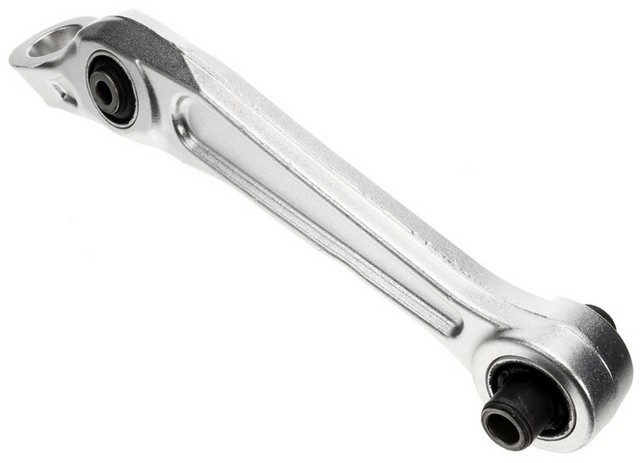

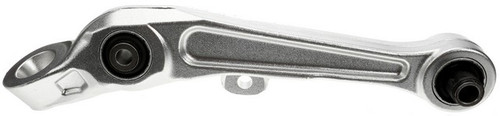

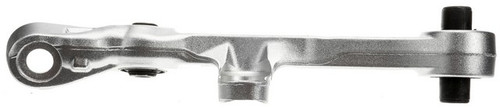

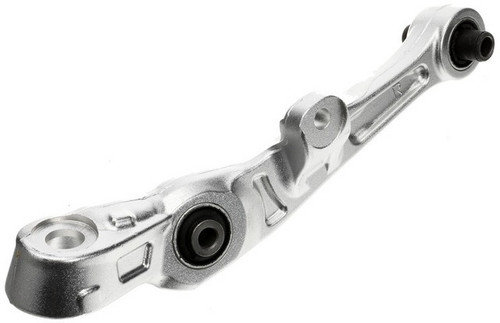

Dorman 521-604 front right lower control arm for the 2005-2009 Nissan 350Z and other vehicles links the wheel to the chassis while the suspension moves.
- Casting/forged aluminum arm with a powder-coated finish for rust and corrosion resistance
- Rubber bushings included, which saves installation time and labor
- Tested by Dorman's product and quality engineers for steady, safe performance
- Dorman OE Solutions line, standard replacement grade
Quick facts
- Part: Dorman 521-604 control arm
- Also called: suspension control arm
- Fits: 2005-2009 Nissan 350Z and other vehicles
- Position: Front right lower forward
- Material: Aluminum
- Condition: New
A worn suspension control arm can show up as a clunk over bumps, steering that pulls or wanders, or uneven tire wear. Worn sway bar links, a tired strut or a loose tie rod end can produce similar signs, so find the cause before buying. The front right takes one of these arms; the left side is ordered separately, and the two are normally replaced together.
Fits
This Dorman control arm is a direct replacement for the 2005-2009 Nissan 350Z and the 2005-2007 Infiniti G35, and it performs like the original equipment part on these vehicles.
Specifications
Fit and size
- Position: front right lower forward
- Quantity per vehicle: 1 for this position
- Length: 262.5 mm
- Bushing inside diameter: 14.3 mm
- Bushing outside diameter: 39.6 mm
- Bushing length: 92 mm
- End 2 type: press in
Build and materials
- Type: casting/forged, standard replacement grade
- Control arm material: aluminum
- Bushing material: rubber
- Finish: powder coated
- Adjustable: no
- Condition: new
- Country of origin: China
In the box
One control arm with its bushings. A ball joint, a grease fitting and mounting hardware are not included; plan on new bolts, since the old ones may not be reusable.
Interchange: 102-7928
CA2186 · 2CB30241 · RK642008 · FA3159 · GS301031 · CMS301031 · 2607293 · 54500AM602 · SK522304 · JTC2970
This part cross-references / interchanges with the following part numbers:
102-7928, CA2186, 2CB30241, RK642008, FA3159, GS301031, CMS301031, 2607293, 54500AM602, SK522304, JTC2970
Frequently Asked Questions
Is the Dorman 521-604 the right 350Z control arm for a 2005-2009 Nissan 350Z?
Yes. This Dorman 521-604 control arm is for the front right lower forward position of the 2005-2009 Nissan 350Z, and the left side is a separate part.
Does this G35 control arm fit the 2005-2007 Infiniti G35?
Yes. Dorman 521-604 fits the 2005-2007 Infiniti G35 in the front right lower forward position, and the left side is ordered separately.
Do the bushings come with this lower control arm?
Yes, the rubber bushings are included. The ball joint, grease fitting and mounting hardware are not included.
What are the bushing sizes on this control arm?
The bushing has a 14.3 mm inside diameter, a 39.6 mm outside diameter and a 92 mm length. The arm itself is 262.5 mm long.
Is the finish on this control arm powder coated, and is it adjustable?
Yes, the finish is powder coated. Dorman 521-604 is an aluminum arm and it is not adjustable.
