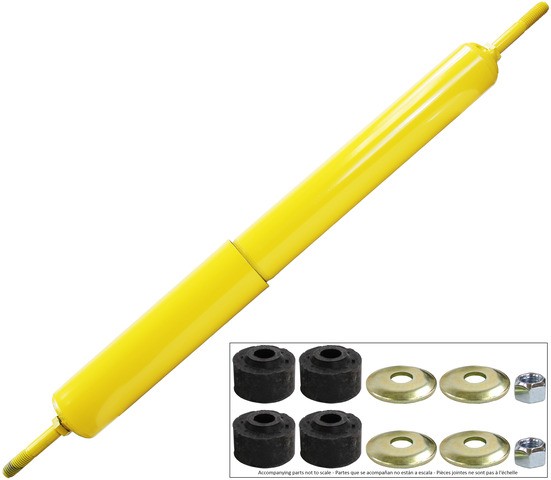

Keep hardworking class 6-8 trucks and buses planted through high mileage and severe service with the Monroe Magnum Suspension Shock Absorber 65468. It's a direct-fit replacement for the 1997-2002 Isuzu FSR and FVR, the 2011-2017 Peterbilt 382, and the 2022 Peterbilt 536, and Monroe catalogs it as a front or rear suspension shock depending on the application. Monroe built the Magnum as the first gas-charged, large-bore shock for air spring and taper leaf suspensions, and its nitrogen gas charge delivers the fast response heavy-duty truck suspensions demand while helping maintain tire-to-road contact by reducing aeration and shock fade.
- 10-stage valving: tuned to each vehicle and paired with a larger 1-3/4-in. bore for more efficient damping control on most applications.
- All-weather fluid: special additives help handle temperature extremes and reduce oil breakdown, while a larger 2-3/8-in. reserve tube holds more fluid on most applications.
- Strong and durable: a shouldered bushing and a bonded bushing with sleeve protect against bushing walkout, backed by arc welds up to 360°.
- Built to last: a robust hydraulic lock-out helps prevent over-extension of air bags, piston top-out and seal damage on most applications, and a PTFE-coated bearing with a nitrocarburized piston rod reduces friction for longer service life.
Designed to reduce noise, vibration and harshness under most driving conditions, and backed by Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty. Sold individually; replacing both shocks on an axle as a matched pair is recommended for balanced ride control.
Interchange: A85069 · HD12150031 · 441850695468 · M65528 · F343368 · 98031001 · SA55032 · 665826 · 85069 · 89455 · 15642863 · 22064805 · 8160120 · 9180147 · 8220648050 · 341620 · 665844 · M85069 · M89455 · 700121 · 170243 · C711011 · C716005 · C716005PLUS · 316312 · SA5069
This part cross-references / interchanges with the following part numbers:
A85069, HD12150031, 441850695468, M65528, F343368, 98031001, SA55032, 665826, 85069, 89455, 15642863, 22064805, 8160120, 9180147, 8220648050, 341620, 665844, M85069, M89455, 700121, 65468, 170243, C711011, C716005, C716005PLUS, 316312, SA5069
Frequently Asked Questions
What vehicles does the Monroe Magnum 65468 fit?
It's a direct-fit replacement for the 1997-2002 Isuzu FSR and FVR, the 2011-2017 Peterbilt 382, and the 2022 Peterbilt 536. See the "Vehicles it fits" section to confirm your configuration.
Is this a front or rear shock?
Monroe catalogs the 65468 as a front or rear suspension shock absorber; the correct position depends on your specific application, so confirm placement for your vehicle.
What makes the Magnum suited to heavy-duty trucks?
It's a gas-charged, large-bore shock built for class 6-8 trucks and buses with air spring and taper leaf suspensions, using a nitrogen charge for fast response under severe, high-mileage use.
Do I need to replace shocks in pairs?
Shocks are sold individually. Replacing both shocks on an axle together as a matched pair is recommended for balanced, even ride control.
What warranty comes with the 65468?
It includes Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.
