Monroe Shocks & Struts 172605 front left strut assembly for the 2009-2012 Nissan Maxima supports the front left corner and damps wheel movement. Also called a complete strut and coil spring assembly, it replaces the strut and spring on that corner together.
- Quick-Strut line: strut, coil spring, upper mount and insulators in one unit
- Application-specific coil spring, mount and strut designs, fit checked and ride tested
- Coil spring engineered to restore ride height and support the vehicle's weight
- Reduces body sway, vibration and road harshness before they reach the cabin
- Upper strut mount helps keep steering precise and limits noise, vibration, harshness and memory steer
- Protective coating resists rust and corrosion and is salt spray tested
Quick facts
- Part: Monroe Shocks & Struts 172605 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2009-2012 Nissan Maxima
- Position: Front left
- Condition: New
A bouncy ride, a clunk over bumps or fluid on the strut body can mean a strut is worn. Worn sway bar links, tires or a loose wheel bearing can be behind similar signs too, so find the cause before buying.
Fits
This is a direct-fit replacement for the 2009-2012 Nissan Maxima, which takes one on each side of the front axle. The listing is one strut for the front left; the front right is its own part, and the two are normally replaced together.
Specifications
Fit and size
- Position: front left
- Quantity per vehicle: 1 for this side
- Compressed length: 13.64 in (346.5 mm)
- Extended length: 17.27 in (438.7 mm)
- Travel length: 3.63 in
- Body length: 14.34 in
Build and materials
- Type: gas-charged strut with coil spring, passive suspension
- Adjustable compression: no; adjustable ride height: no
- Finish: protective rust-resistant coating
- Condition: new
- Warranty: Monroe limited lifetime warranty
In the box
One front left strut assembly with the coil spring, upper strut mount, coil spring insulators, strut mount insulators and mounting hardware.
Installation notes

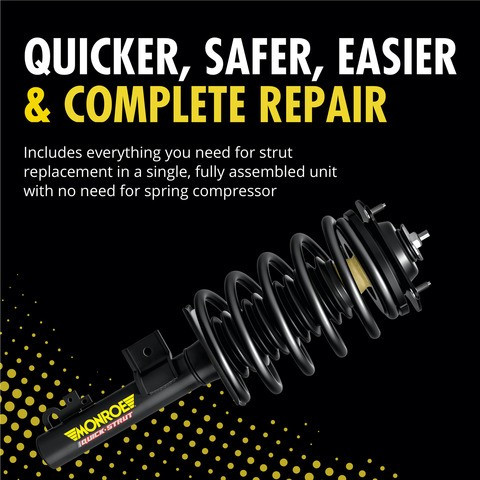

- Arrives fully assembled, so no spring compressor is needed.
Interchange: 18818588 · 18818926 · LS3484981L · 1333426L · SR4238 · 34NS1145 · LS57493 · E43039DA0A · E43039DC0A · E43039DF0A · E43039N00D · E43039N20D · 811571 · 92140415 · 11335
This part cross-references / interchanges with the following part numbers:
18818588, 18818926, LS3484981L, 1333426L, SR4238, 34NS1145, LS57493, 172605, E43039DA0A, E43039DC0A, E43039DF0A, E43039N00D, E43039N20D, 811571, 92140415, 11335
Frequently Asked Questions
Does the 2009-2012 Nissan Maxima take this front left strut assembly?
Yes, Monroe Shocks & Struts 172605 is a direct-fit front left strut assembly for the 2009-2012 Nissan Maxima; the front right side is a separate part.
Does the Monroe 172605 come with the coil spring and upper mount?
Yes. Monroe 172605 includes the coil spring, upper strut mount, coil spring and strut mount insulators and mounting hardware, all in one assembled unit.
How long is this strut assembly compressed and extended?
Compressed length is 13.64 in (346.5 mm) and extended length is 17.27 in (438.7 mm), with 3.63 in of travel. Body length is 14.34 in.
Can the compression or ride height on this gas-charged strut be adjusted?
No, this passive strut has no adjustable compression or adjustable ride height; its application-specific coil spring is engineered to restore ride height.
Do I need a spring compressor to install this Monroe Quick-Strut?
No. Monroe 172605 arrives fully assembled with the spring and mount already on the strut, so no spring compressor is needed.
