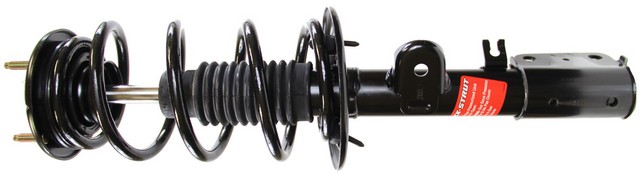

Monroe Shocks & Struts 272729 front right strut assembly for the 2013-2019 Ford Explorer replaces the strut, coil spring and upper mount as one unit. Also sold as a complete strut and coil spring assembly, it handles the springing and damping at the front right wheel.
- Monroe Quick-Strut line, with the strut, coil spring and upper strut mount preassembled in one unit
- Application-specific coil spring calibrated to restore ride height and support the vehicle's weight
- Upper strut mount helps keep steering precise and limits noise, vibration, harshness and memory steer
- Strut assembly reduces body sway, vibration and road harshness before they reach the cabin
- Protective coating resists rust and corrosion, and salt spray testing checks it
- Fit checked and ride tested, with a vehicle-specific design
Quick facts
- Part: Monroe Shocks & Struts 272729 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2013-2019 Ford Explorer
- Position: Front right
- Condition: New
A bouncy ride, clunks over bumps or fluid on the strut body can mean a strut is worn. Before you replace it, rule out tire wear, wheel balance and loose or worn linkage, since those can feel similar from the driver's seat.
Fits
This is a direct-fit replacement for the 2013-2019 Ford Explorer, which takes one on the front right. The front left is a separate part, and the two front struts are normally replaced at the same time.
Specifications
Fit and size
- Position: Front right
- Quantity: 1 per listing, for the front right
- Compressed length: 11.8 in (299.7 mm)
- Extended length: 17.45 in (443.2 mm)
- Travel length: 5.65 in
- Body length: 16.17 in (410.7 mm)
Build and materials
- Type: gas-charged, passive suspension
- Adjustable compression: No
- Adjustable ride height: No
- Condition: New
- Warranty: Monroe Limited Lifetime Warranty
In the box
One front right strut assembly with the coil spring, upper strut mount, strut mount insulator and coil spring insulator, plus mounting hardware.
Installation notes
- The unit arrives fully assembled, so no spring compressor is needed.
Interchange: 2701594496 · 18817151 · 18920350 · LS5494771R · 2333451R · FB5Z18124M · FB5Z18124T · FB5Z18124V · 34FD1155 · NS272729 · 817151 · 92140716
This part cross-references / interchanges with the following part numbers:
2701594496, 18817151, 18920350, LS5494771R, 2333451R, FB5Z18124M, FB5Z18124T, FB5Z18124V, 34FD1155, 272729, NS272729, 817151, 92140716
Frequently Asked Questions
Is the Monroe Quick-Strut 272729 the right strut for the front right of a 2013-2019 Ford Explorer?
Yes, Monroe Shocks & Struts 272729 is the front right strut assembly for the 2013-2019 Ford Explorer; the front left side takes its own part.
Does the 272729 strut assembly come with the coil spring and upper mount?
Yes, the coil spring, upper strut mount and both insulators are part of the unit, and mounting hardware is included.
What are the compressed and extended lengths of the Monroe 272729 strut assembly?
Monroe 272729 measures 11.8 in (299.7 mm) compressed and 17.45 in (443.2 mm) extended, with 5.65 in of travel and a 16.17 in (410.7 mm) body length.
What signs can a worn Quick-Strut show?
A bouncy ride, clunks over bumps or fluid on the strut body can mean a strut is worn. A shop can inspect it to confirm.
Do I need a spring compressor to install Monroe 272729?
No, this strut assembly comes fully assembled, so no spring compressor is needed.
