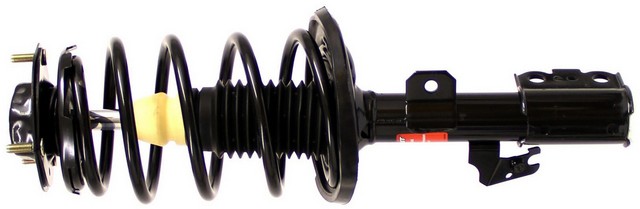

Monroe Shocks & Struts 172205 front right strut assembly for the 2004-2006 Toyota Camry and other vehicles combines the strut, coil spring and upper mount in one unit. Also sold as a complete strut and coil spring assembly, it is fit checked and ride tested.
- Monroe Quick-Strut line with application-specific strut, coil spring and mount designs
- Coil spring engineered to restore ride height and support the vehicle's weight
- Front strut assembly reduces body sway, vibration and road harshness for improved handling
- Upper strut mount helps keep steering precise and limits noise, vibration, harshness and memory steer
- Protective coating resists rust and corrosion and is salt spray tested
Quick facts
- Part: Monroe Shocks & Struts 172205 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2004-2006 Toyota Camry and other vehicles
- Position: Front right
- Condition: New
A worn front strut can show up as a bouncy ride, a clunk over bumps or fluid on the strut body. Worn tires, sway bar links, control arm bushings or a tired wheel bearing can be behind a similar ride too, so find the cause before you buy. Replace front struts as a pair when you can; this listing is one unit, for the front right.
Fits
Along with the 2004-2006 Toyota Camry, this strut assembly fits the 2004-2006 Toyota Solara and the 2004-2006 Lexus ES330. The 2004-2006 Lexus ES330 takes one on the front right, and the front left is a separate part.
Specifications
Fit and size
- Position: front right
- Quantity per vehicle: 1 (front right)
- Body length: 13.81 in
- Compressed length: 14.49 in (368 mm)
- Extended length: 21.77 in (553 mm)
- Travel length: 7.28 in
Build and materials
- Type: gas charged, passive suspension
- Adjustable compression: no
- Adjustable ride height: no
- Condition: new
- Warranty: Monroe Limited Lifetime Warranty
In the box
One front right strut assembly with the coil spring, upper strut mount, coil spring insulator, strut mount insulator and mounting hardware.
Installation notes
- Includes everything needed for strut replacement in one fully assembled unit.
- No spring compressor is needed.
Interchange: LS5495042R · 34TY1128
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
LS5495042R, 34TY1128, 172205
Frequently Asked Questions
Does the Monroe 172205 fit every engine in the 2004-2006 Toyota Camry?
Yes. Monroe Shocks & Struts 172205 is the front right strut assembly for the 2004-2006 Toyota Camry, whichever engine it has.
Are these suspension struts for the 2004-2006 Toyota Camry sold as a pair?
No. This listing is one front right strut assembly. The front left is a separate part, normally replaced at the same time.
Does the Monroe 172205 include the coil spring and upper mount?
Yes. It comes fully assembled with the coil spring, upper strut mount, both insulators and mounting hardware.
Is this front right strut assembly gas charged or adjustable?
It is gas charged and passive, with no adjustable compression or ride height. Extended length is 21.77 in (553 mm) and compressed length is 14.49 in (368 mm).
How can I tell if a front strut is wearing out?
Look for fluid running down the strut body or a cracked coil spring, and notice any clunk over bumps; each can point to wear. A shop can inspect it.
