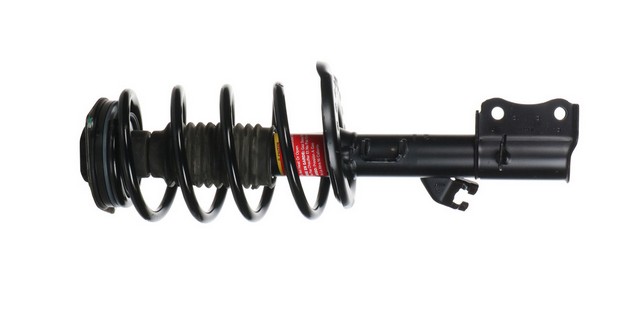

Monroe 172947 front right strut assembly for the 2014-2019 Nissan Sentra is a Monroe quick strut that supports the front right corner and damps road movement. This complete strut and coil spring assembly puts the strut, coil spring and upper mount together in one preassembled unit.
- Quick-Strut line with application-specific spring, mount and strut designs, fit checked and ride tested
- Coil spring engineered to restore ride height and support the vehicle's weight
- Reduces body sway, vibration and road harshness before it reaches the passenger cabin
- Upper strut mount helps keep steering precise and limits noise, vibration, harshness and memory steer
- Protective coating resists rust and corrosion, and salt spray testing backs it up
Quick facts
- Part: Monroe 172947 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2014-2019 Nissan Sentra
- Position: Front right
- Material: Steel
- Condition: New
A bouncy ride, a clunk over bumps or an oily strut body can mean this strut is worn, though a loose sway bar end link or a tired control arm bushing can be behind the noise and bounce. One strut goes on each side of the front axle. This listing is the front right one; the front left is ordered separately, and the two are normally replaced together.
Fits
This front right strut assembly is a direct-fit replacement for the 2014-2019 Nissan Sentra.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1 for this side
- Body length: 13.39 in
- Compressed length: 13.82 in (351 mm)
- Extended length: 17.48 in (444 mm)
- Travel length: 3.66 in
- Upper mount code: 93
Build and materials
- Type: gas charged, passive
- Adjustable compression: no
- Adjustable ride height: no
- Material: steel
- Condition: new
- Warranty: Monroe Limited Lifetime Warranty
In the box
One front right strut assembly with the coil spring, strut mount, coil spring insulators, strut mount insulators and mounting hardware.
Installation notes
- No spring compressor is needed, because the spring arrives assembled with the strut and mount.
Interchange: LS3485611R · 34NS1140
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is this Monroe strut assembly right for the 2014-2019 Nissan Sentra?
Yes. Monroe 172947 is the front right strut assembly for the 2014-2019 Nissan Sentra. The front left side is a separate part.
What comes with the Monroe quick strut assembly besides the strut?
The coil spring, strut mount, coil spring insulators, strut mount insulators and mounting hardware are all included with this strut assembly.
Is the Monroe complete strut assembly gas charged?
Yes. Monroe 172947 is gas charged and passive, with no adjustable compression or ride height. Extended length is 17.48 in (444 mm) and compressed length is 13.82 in (351 mm).
Does the Monroe quick strut (strut and coil spring assembly) need a spring compressor?
No. The spring comes assembled on the strut with its mount, so installing this unit does not call for a spring compressor.
Does Monroe 172947 replace number 34NS1140?
Yes. 34NS1140 is a listed cross-reference for Monroe 172947, the front right strut assembly. LS3485611R is the other listed cross-reference.
