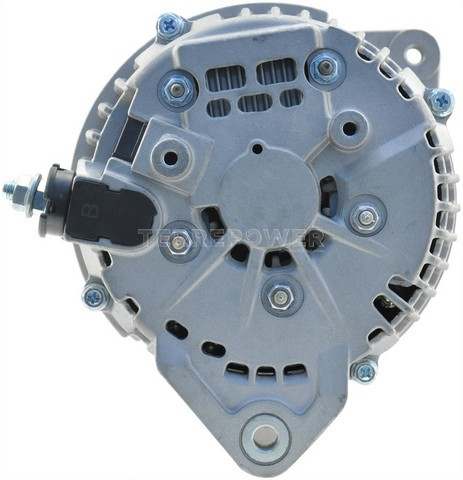

TERREPOWER 11120 alternator for the 2005-2007 Nissan Armada V8 5.6L and other vehicles turns engine rotation into electrical power for the battery and the rest of the electrical system. This remanufactured unit recharges the battery while the engine runs.
- 130-ampere rating at 12 volts DC
- Internal regulator and internal fan with air cooling
- Clockwise (Right) rotation
- Conventional pulley with 7 grooves for a serpentine belt, 60 mm (2-3/8 in) outside diameter
- Negative ground, with a non-clutch, non-decoupled pulley
Quick facts
- Part: TERREPOWER 11120 alternator
- Fits: 2005-2007 Nissan Armada V8 5.6L and other vehicles
- Condition: Remanufactured
A battery warning light, dim headlights or a battery that won't hold a charge can point to an alternator problem. A tired battery, a worn or loose belt or corroded cables can be behind those signs too, so find the cause before buying an alternator.
Fits
The 2005-2007 Nissan Armada V8 5.6L and the 2004-2007 Nissan Titan V8 5.6L take this alternator. It is also an alternator for the 2004-2007 Infiniti QX56 V8 5.6L and fits more vehicles. If your vehicle isn't named here, run it through the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Voltage: 12 V DC
- Amperage rating: 130 A
- Rotation direction: Clockwise (Right)
- Outside pulley diameter: 60 mm (2-3/8 in)
- Pulley grooves: 7
Build and materials
- Condition: Remanufactured
- Regulator: Internal
- Cooling: Air, internal fan
- Pulley: Conventional, serpentine belt type, included
- Ground: Negative
- OE manufacturer: Hitachi
- Country of origin: Mexico
In the box
One alternator with its pulley. This listing is a single alternator, which is also the quantity one vehicle takes.
Interchange: LR1130-701 · 23100-8S100 · 23100-8S10A
This part cross-references / interchanges with the following part numbers:
LR1130-701, 23100-8S100, 23100-8S10A
Frequently Asked Questions
Does TERREPOWER 11120 work as an alternator for the 2004-2007 Nissan Titan V8 5.6L?
Yes. TERREPOWER 11120 fits the 2004-2007 Nissan Titan V8 5.6L, and that truck takes one alternator.
Does this fit as a 2005 Nissan Armada alternator in the 2005-2007 V8 5.6L range?
Yes. The 2005-2007 Nissan Armada V8 5.6L takes one TERREPOWER 11120, so a 2005 model is covered.
Is this a 130-amp alternator, and what voltage does it run?
Yes. This alternator is rated at 130 amperes and runs at 12 volts DC, with negative ground and an internal regulator.
Does this alternator come with a pulley, and how many grooves does it have?
Yes, the pulley is included. It is a conventional pulley with 7 grooves for a serpentine belt, 60 mm (2-3/8 in) across.
Does TERREPOWER 11120 replace number 23100-8S100?
Yes. 23100-8S100 is among the numbers TERREPOWER 11120 replaces, so you can match it against your old alternator's number.
