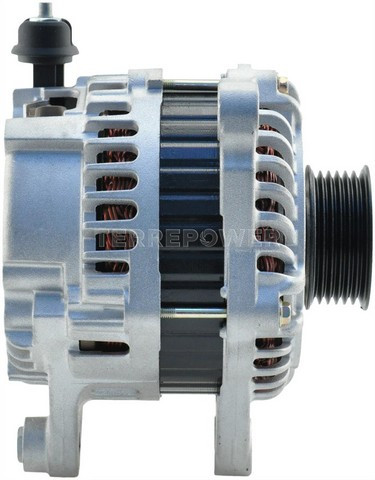

TERREPOWER 11267 alternator for the 2009-2013 Mazda 6 V6 3.7L and other vehicles charges the battery and supplies power to the electrical system while the engine runs. This remanufactured alternator is designed for dependability and reliability through the service life of the vehicle.
- Rated at 110 amperes on a 12-volt DC system
- Internal regulator and internal fan with air cooling
- Conventional pulley included, with 6 grooves for a serpentine belt
- Clockwise (right) rotation with a negative ground
Quick facts
- Part: TERREPOWER 11267 alternator
- Fits: 2009-2013 Mazda 6 V6 3.7L and other vehicles
- Condition: Remanufactured
Dim or flickering headlights, a battery warning light or a battery that keeps going flat can mean the alternator is not charging, although a weak battery, a worn belt or a loose connection could be behind them too. Before replacing it, look over the belt and the wiring connectors with the engine off, and leave the charging-output test to a shop.
Fits
It fits the 2009-2013 Mazda 6 V6 3.7L, the 2007 Mazda CX-9 V6 3.5L and the 2008-2015 CX-9 V6 3.7L. This listing is one alternator, and the 2009-2013 Mazda 6 V6 3.7L takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Pulley: included, conventional, 6 grooves, serpentine belt
- Outside pulley diameter: 58 mm (2-1/4 in)
- Rotation direction: clockwise (right)
Build and materials
- Voltage: 12 V DC
- Amperage rating: 110 A
- Regulator type: internal
- Cooling: air, with internal fan
- Ground type: negative
- One-wire capable: no
- Decoupler or clutch pulley: no
- Condition: remanufactured
- Country of origin: Mexico
In the box
One remanufactured alternator with its pulley.
Interchange: CY01-18-300A
A3TJ2391
Frequently Asked Questions
Is this a 2013 Mazda CX-9 alternator replacement with the V6 3.7L?
Yes. TERREPOWER 11267 fits the 2008-2015 Mazda CX-9 V6 3.7L, so 2013 is covered, and that car takes one alternator.
Is this the right Mazda CX-9 alternator for a 2009 model with the V6 3.7L?
Yes. The 2008-2015 Mazda CX-9 V6 3.7L is covered, and 2009 falls inside those years.
Does this TERREPOWER alternator come with the pulley?
Yes. TERREPOWER 11267 includes its conventional pulley, which has 6 grooves for a serpentine belt and a 58 mm (2-1/4 in) outside diameter.
What amperage and rotation does this alternator have?
This alternator is rated at 110 amperes on 12 volts DC and turns clockwise (right). The regulator is internal, and the unit is not one-wire capable.
Does TERREPOWER 11267 replace number A3TJ2391?
Yes. A3TJ2391 is on this alternator's interchange list, along with CY01-18-300A.
