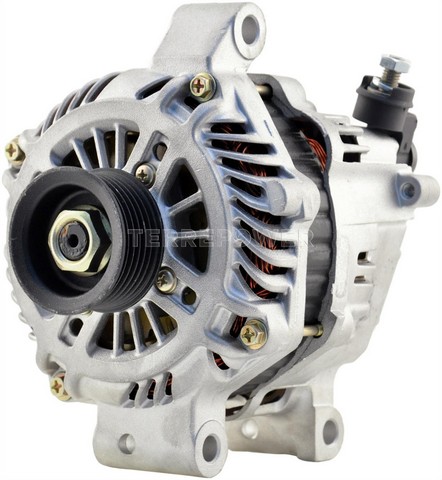

TERREPOWER 11317 alternator for the 2007-2015 Mitsubishi Outlander V6 3.0L charges the battery and powers the vehicle's electrical system. This remanufactured unit is made for dependable service throughout the vehicle's service life.
- 12-volt, 120-amp rating with negative ground
- Internal regulator and internal fan, with air cooling
- Clockwise (right) rotation
- Pulley included: 6-groove serpentine-belt pulley, 60 mm (2-3/8 in) outside diameter
- Conventional pulley rather than a decoupler or clutch type
Quick facts
- Part: TERREPOWER 11317 alternator
- Fits: 2007-2015 Mitsubishi Outlander V6 3.0L
- Condition: Remanufactured
A failing alternator can show up as dimming headlights, a battery warning light or a battery that keeps going flat. Before you replace the alternator, rule out a weak battery, a worn or slipping belt and corroded cable connections, since those can look like the same trouble.
Fits
This alternator is a direct-fit replacement for the 2007-2015 Mitsubishi Outlander V6 3.0L, which takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Voltage: 12 V DC
- Amperage rating: 120 A
- Rotation direction: clockwise (right)
- Pulley belt type: serpentine
- Pulley groove quantity: 6
- Outside pulley diameter: 60 mm (2-3/8 in)
Build and materials
- Condition: remanufactured
- Regulator type: internal
- Cooling method: air, with internal fan
- Pulley type: conventional, pulley included
- Ground type: negative
- Country of origin: Mexico
In the box
One alternator with its pulley.
Interchange: 1800A141 · A3TG4491 · A3TG4491ZC
This part cross-references / interchanges with the following part numbers:
1800A141, A3TG4491, A3TG4491ZC
Frequently Asked Questions
Is this the right alternator for the 2007-2015 Mitsubishi Outlander V6 3.0L?
Yes. TERREPOWER 11317 is listed for the 2007-2015 Mitsubishi Outlander V6 3.0L, and that vehicle takes one.
Does the TERREPOWER 11317 alternator come with a pulley?
Yes. The pulley is included. It is a conventional serpentine-belt pulley with 6 grooves and a 60 mm (2-3/8 in) outside diameter.
What amperage is this alternator rated for?
This TERREPOWER 11317 is rated at 120 amps and 12 volts DC, with an internal regulator and negative ground.
Why does my battery keep going flat with a weak alternator?
A failing alternator can leave the battery undercharged, which can show up as dim lights, a battery warning light or a battery that keeps going flat. A shop can test the charging system to find the cause.
Does number A3TG4491 cross to this alternator?
Yes. A3TG4491 is on the interchange list for TERREPOWER 11317, along with 1800A141 and A3TG4491ZC.
