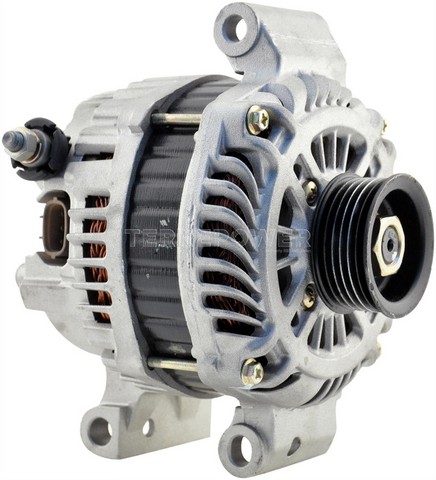

TERREPOWER 11330 alternator for the 2012-2017 Mazda 5 4-cylinder 2.5L and other vehicles is a remanufactured unit that charges the battery. It turns belt-driven engine rotation into electrical power for the vehicle's electrical system.
- Rated at 110 amps and 12 volts DC
- Internal voltage regulator
- Air cooled with an internal fan
- Conventional pulley with 6 grooves for a serpentine belt, included
- Clockwise (right) rotation and negative ground
Quick facts
- Part: TERREPOWER 11330 alternator
- Fits: 2012-2017 Mazda 5 4-cylinder 2.5L and other vehicles
- Condition: Remanufactured
Dimming lights, a battery warning light or a battery that keeps going flat can mean the alternator is worn. A weak battery, a slipping belt or corroded cable ends can be behind these signs too, so find the cause before buying.
Fits
It fits the 2012-2017 Mazda 5 4-cylinder 2.5L, the 2007-2012 Mazda CX-7 4-cylinder 2.3L and the 2010-2012 CX-7 4-cylinder 2.5L. The 2012-2017 Mazda 5 4-cylinder 2.5L takes one alternator, and this listing is one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Voltage: 12 V DC
- Amperage rating: 110 A
- Rotation direction: clockwise (right)
- Pulley outside diameter: 56 mm (2-3/16 in)
- Pulley grooves: 6
- Pulley belt type: serpentine
Build and materials
- Condition: remanufactured
- Regulator type: internal
- Cooling method: air, internal fan
- Pulley type: conventional, not a decoupler or clutch pulley
- Ground type: negative
- One-wire capable: no
- Brushless: no
- Country of origin: Mexico
In the box
One alternator with its pulley.
Interchange: L33G-18-300 · L33G-18-300A
A3TJ1191
This part cross-references / interchanges with the following part numbers:
L33G-18-300, L33G-18-300A, A3TJ1191
Frequently Asked Questions
Is TERREPOWER 11330 the right Mazda 5 alternator for the 2012-2017 4-cylinder 2.5L?
Yes, TERREPOWER 11330 fits the 2012-2017 Mazda 5 4-cylinder 2.5L, which takes one.
Is this a 2011 Mazda CX-7 alternator for both the 4-cylinder 2.3L and 2.5L?
Yes. TERREPOWER 11330 fits the 2007-2012 Mazda CX-7 4-cylinder 2.3L and the 2010-2012 CX-7 4-cylinder 2.5L, so a 2011 CX-7 with either engine is covered.
Does TERREPOWER 11330 come with the pulley already on it?
Yes, the pulley is included. It is a conventional 6-groove serpentine-belt pulley, 56 mm (2-3/16 in) across, not a decoupler or clutch pulley.
How many amps is this alternator, and which way does it turn?
This alternator is rated at 110 amps at 12 volts DC and turns clockwise (right). Its voltage regulator is internal.
Does the number L33G-18-300 cross to this alternator?
Yes, L33G-18-300 is one of the other numbers this TERREPOWER 11330 alternator replaces. The full list of cross-reference numbers is on the Interchange line.
