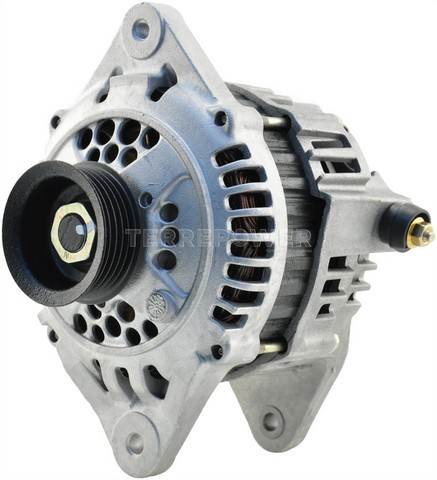

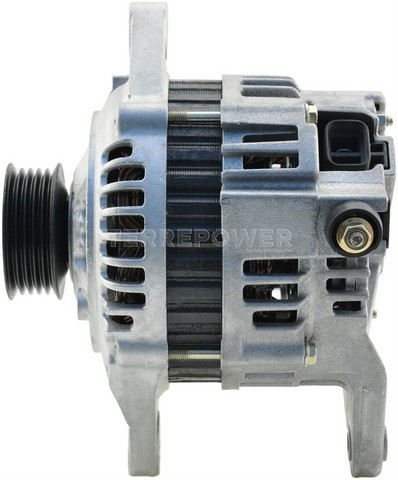

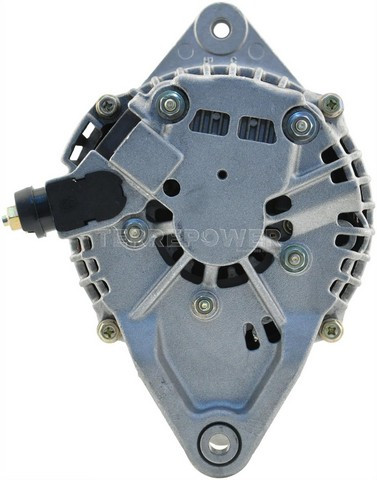

TERREPOWER 13645 alternator for the 1995-1999 Subaru Legacy H4 2.2L and the 1996-1999 Legacy H4 2.5L recharges the battery and powers the electrical system while the engine runs. This is a remanufactured alternator.
- 85 ampere rating on a 12-volt DC system
- Internal regulator
- Conventional 5-groove pulley for a serpentine belt, 59 mm outside diameter
- Air-cooled with an internal fan
- Clockwise (right) rotation
Quick facts
- Part: TERREPOWER 13645 alternator
- Fits: the 1995-1999 Subaru Legacy H4 2.2L and the 1996-1999 Legacy H4 2.5L
- Condition: Remanufactured
A battery warning light, dim headlights or a battery that keeps going flat can mean the alternator is worn. Before you replace it, rule out a loose or worn drive belt, corroded battery terminals and a weak battery, since those can look much like a failing alternator; a shop can also test charging output.
Fits
This is a direct-fit alternator replacement for the 1995-1999 Subaru Legacy H4 2.2L and the 1996-1999 Legacy H4 2.5L. Each of these engines takes one alternator.
Specifications
Fit and size
- Quantity per vehicle: 1
- Voltage: 12 V DC
- Amperage rating: 85 A
- Outside pulley diameter: 59 mm (2-5/16 in)
- Pulley grooves: 5
- Pulley belt type: serpentine
- Rotation: clockwise (right)
Build and materials
- Condition: remanufactured
- Regulator: internal
- Cooling: air, internal fan
- Pulley: conventional, included
- One-wire capable: no
- Country of origin: Mexico
In the box
One remanufactured alternator with its pulley.
Interchange: LR185-701 · LR185-701H · LR185-702 · 23700-AA210 · 23700-AA210F · 23700-AA211 · 23700-AA211F · 23700-AA34A
This part cross-references / interchanges with the following part numbers:
LR185-701, LR185-701H, LR185-702, 23700-AA210, 23700-AA210F, 23700-AA211, 23700-AA211F, 23700-AA34A
Frequently Asked Questions
Is the TERREPOWER 13645 alternator right for the 1995-1999 Subaru Legacy H4 2.2L?
Yes. TERREPOWER 13645 fits the 1995-1999 Subaru Legacy H4 2.2L and the 1996-1999 Legacy H4 2.5L, one alternator per car.
Does the TERREPOWER 13645 alternator come with the pulley?
Yes. The TERREPOWER 13645 includes its pulley, a conventional 5-groove pulley for a serpentine belt.
What is the amperage rating of this remanufactured alternator?
This alternator is rated at 85 amperes on a 12-volt DC system, and it has an internal regulator.
What signs can show an 85-amp alternator is wearing out?
A battery warning light, dim headlights or a battery that keeps going flat can point to a worn alternator. A shop can test the charging output to confirm.
Is 23700-AA211 the same alternator as TERREPOWER 13645?
Yes. 23700-AA211 is one of the numbers that TERREPOWER 13645 replaces.
