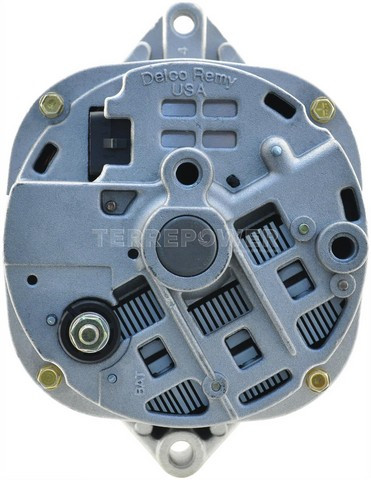

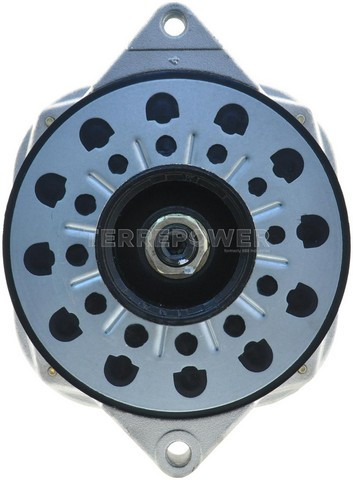

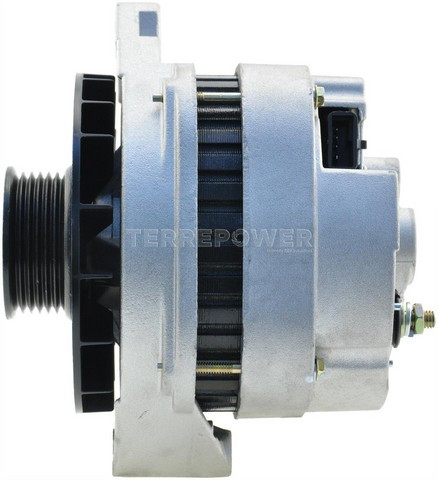

TERREPOWER 8226-P50 alternator for the 1998-2002 Cadillac Eldorado V8 4.6L and other vehicles is a remanufactured unit that charges the battery. It is designed for dependable, reliable service across the vehicle's service life.
- Rated at 140 amps on a 12 volt DC system
- CS144 family alternator with an internal regulator
- Conventional serpentine-belt pulley with 6 grooves, 66 mm (2-5/8 in) outside diameter
- External fan included, with air cooling
- Clockwise (right) rotation and negative ground
Quick facts
- Part: TERREPOWER 8226-P50 alternator
- Fits: 1998-2002 Cadillac Eldorado V8 4.6L and other vehicles
- Condition: Remanufactured
A battery warning light, dim headlights or a battery that keeps running low can mean the alternator is not charging well. Before you replace the alternator, rule out a worn battery, a slipping belt and corroded battery cable ends, since each of them can leave a battery low on its own.
Fits
It fits the 1998-2002 Cadillac Eldorado V8 4.6L, and it is an alternator for the 1998-1999 Cadillac DeVille V8 4.6L as well.
Specifications
Fit and size
- Quantity per vehicle: 1
- Voltage: 12 V DC
- Amperage rating: 140 A
- Outside pulley diameter: 66 mm (2-5/8 in)
- Pulley grooves: 6
- Rotation direction: clockwise (right)
Build and materials
- Condition: remanufactured
- Regulator: internal
- Pulley: conventional, serpentine belt type, included
- Fan: external, included
- Cooling method: air
- Ground: negative
- Country of origin: Mexico
In the box
One alternator with its pulley and external fan included. This listing is one alternator, and the car takes a single one.
Interchange: 10464088 · 10464426 · 10480296 · 10480313 · 10480366
This part cross-references / interchanges with the following part numbers:
10464088, 10464426, 10480296, 10480313, 10480366
Frequently Asked Questions
Is this a Cadillac Eldorado alternator for the 1998-2002 models with the V8 4.6L?
Yes. TERREPOWER 8226-P50 fits the 1998-2002 Cadillac Eldorado V8 4.6L, and the car takes one alternator.
Does this remanufactured alternator come with the pulley and fan?
Yes. The pulley and the external fan are both included. The pulley is a conventional 6-groove serpentine-belt type, 66 mm (2-5/8 in) across.
How many amps is this 12-volt alternator?
TERREPOWER 8226-P50 is rated at 140 amps on a 12 volt DC system. It has an internal regulator and negative ground.
What does a failing 140-amp alternator look like?
A battery warning light, dim headlights or a battery that keeps going flat can mean the charging system is weak. A shop can test the charging output for you.
Is the regulator built in on this alternator?
Yes. This alternator has an internal regulator and turns clockwise (right). It is not one-wire capable.
