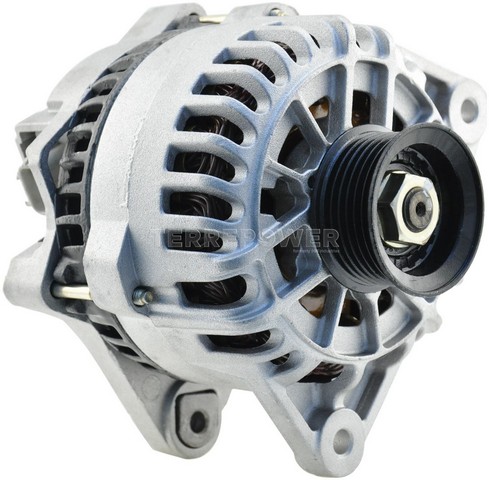

TERREPOWER 8265 alternator for the 2001-2006 Ford Ranger 2.3L and other vehicles is a remanufactured unit that charges the battery and supplies power to the electrical system.
Dimming lights, a battery warning light or a battery that keeps going flat can mean the alternator is wearing out, but a weak battery or a slipping drive belt can be behind them too, so rule those out first. If a worn alternator is the cause, this one replaces it.
This is a direct-fit 2001-2006 Ford Ranger alternator for the L4-2.3L engine, and it also fits the 2001-2008 Mazda B2300 2.3L. Each of them takes a single unit.
Fit and size
Build and materials
Interchange: 1L5U-10300-AB · 1L5U-10300-AC · 1L5U-10300-AD · 1L5U-10300-AE · 1L5Z-10346-AA · 1F70-18-300
DN
This part cross-references / interchanges with the following part numbers:
Is this a 2005 Ford Ranger alternator for the 2.3L engine?
Yes. TERREPOWER 8265 fits the 2001-2006 Ford Ranger 2.3L (L4-2.3L), which includes the 2005 model year.
Does this Mazda B2300 alternator fit the 2001-2008 model years with the 2.3L engine?
Yes. TERREPOWER 8265 fits the 2001-2008 Mazda B2300 2.3L (L4-2.3L), and the vehicle takes one alternator.
How many grooves and what pulley size does the 8265 alternator have?
The pulley is included and has 6 grooves for a serpentine belt, with a 61 mm (2-3/8 in) outside diameter. It is a conventional pulley, not a clutch or decoupler type.
What amperage and rotation does this remanufactured alternator have?
This alternator is rated 110 amps at 12 volts DC and turns clockwise (right). It has an internal regulator and an internal fan.
Does the 8265 alternator replace Ford number 1L5U-10300-AB?
Yes. 1L5U-10300-AB is one of the numbers this TERREPOWER alternator replaces; others include 1L5Z-10346-AA and 1F70-18-300.
