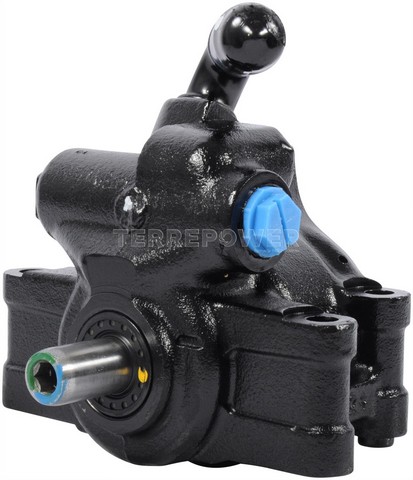

TERREPOWER 712-0143 power steering pump for the 2005-2010 Ford Mustang is a remanufactured hydraulic pump that sends pressurized fluid to the steering system.
- Remanufactured hydraulic pump with a cast iron housing
- Threaded M16X1.50 outlet with a 16 mm outlet diameter
- Pipe-type inlet with a 0.624 in inlet diameter
- Press-on pulley attachment and four mounting holes
- Remote reservoir design
Quick facts
- Part: TERREPOWER 712-0143 power steering pump
- Fits: 2005-2010 Ford Mustang
- Material: Cast iron housing
- Condition: Remanufactured
A worn pump can show up as a whine or groan when you turn, steering that feels heavy, or fluid around the pump. Before you replace the pump, rule out low fluid, a leaking hose or fitting and a slipping drive belt, since any of them can make the steering sound or feel the same. If the pump is the cause, this one takes its place.
Fits
This pump fits the 2005-2010 Ford Mustang, and the car needs a single pump.
Specifications
Fit and size
- Quantity per vehicle: 1
- Number of mounting holes: 4
- Outlet diameter: 16 mm
- Outlet thread size: M16X1.50
- Outlet attachment: threaded
- Inlet diameter: 0.624 in
- Inlet attachment: pipe
Build and materials
- Type: hydraulic
- Housing material: cast iron
- Pulley attachment: press-on
- Remote reservoir: yes
- Condition: remanufactured
- Country of origin: Mexico
In the box
One power steering pump and an installation kit. The pulley, reservoir, reservoir cap and filter are not included.
Interchange: 5R3Z-3A674-BA · 7R3Z-3A674-D · 7R3Z-3A674-DA
This part cross-references / interchanges with the following part numbers:
5R3Z-3A674-BA, 7R3Z-3A674-D, 7R3Z-3A674-DA
Frequently Asked Questions
Will this Mustang power steering pump work on a 2005-2010 Ford Mustang?
Yes. TERREPOWER 712-0143 is listed for the 2005-2010 Ford Mustang, and the car takes one pump.
Does the TERREPOWER 712-0143 come with a pulley or reservoir?
No. TERREPOWER 712-0143 comes with the pump and an installation kit; the pulley, reservoir, reservoir cap and filter are not included.
What size are the inlet and outlet on this power steering pump?
The outlet is 16 mm with an M16X1.50 thread, and the inlet is 0.624 in with a pipe attachment.
What symptoms can a worn power steering pump like this one show?
A whine or groan when turning, heavy steering and fluid around the pump can all be signs of wear. A shop can test the pump if you are unsure.
Is 7R3Z-3A674-D a number this TERREPOWER pump replaces?
Yes. 7R3Z-3A674-D is one of the interchange numbers this power steering pump replaces.
