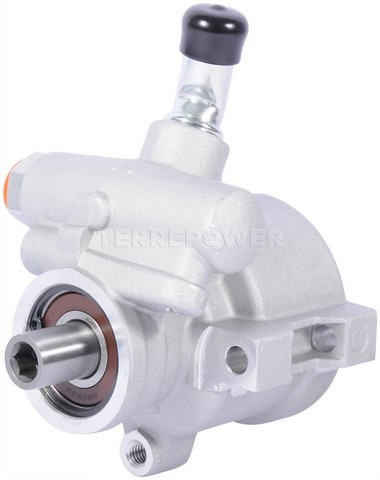

TERREPOWER 730-0120 power steering pump for the 2004-2009 Cadillac XLR builds hydraulic pressure that gives the steering its power assist. It is a remanufactured pump with an aluminum housing.
- Remanufactured hydraulic power steering pump
- Aluminum housing
- Threaded outlet with an M16X1.50 thread
- Press-on pulley attachment and a pipe inlet
- Installation kit included
Quick facts
- Part: TERREPOWER 730-0120 power steering pump
- Fits: 2004-2009 Cadillac XLR
- Material: Aluminum housing
- Condition: Remanufactured
A whine or groan when turning, heavy steering or fluid around the pump can mean the pump is wearing out. A fluid line, the steering gear or a slipping drive belt can be behind these signs too, so track down the cause before you buy a pump.
Fits
It is a direct-fit replacement for the 2004-2009 Cadillac XLR, which takes one pump.
Specifications
Fit and size
- Quantity per vehicle: 1
- Number of mounting holes: 2
- Outlet thread size: M16X1.50
- Outlet diameter: 16 mm
- Thread diameter: 8 mm
- Inlet attachment: pipe
- Pulley attachment: press-on
Build and materials
- Condition: remanufactured
- Housing material: aluminum
- Remote reservoir: yes
- Outlet attachment: threaded
- Country of origin: Mexico
In the box
One power steering pump with an installation kit. The pulley, reservoir, reservoir cap, filter and sensor are not included.
Interchange: 15824425 · 19318656 · 25897658
This part cross-references / interchanges with the following part numbers:
15824425, 19318656, 25897658
Frequently Asked Questions
Does the TERREPOWER 730-0120 fit the 2004-2009 Cadillac XLR?
Yes. TERREPOWER 730-0120 is listed for the 2004-2009 Cadillac XLR, and the car takes one pump.
Does this remanufactured pump come with a pulley or reservoir?
No. TERREPOWER 730-0120 comes with an installation kit, but the pulley, reservoir, reservoir cap, filter and sensor are not included.
What outlet thread does this power steering pump have?
The outlet is threaded, with an M16X1.50 thread and a 16 mm outlet diameter. The inlet attaches by pipe.
What are the signs of a worn power steering pump?
A whine or groan when turning, steering that feels heavy or fluid showing around the pump can mean it is wearing out.
Is this a remote-reservoir power steering pump?
Yes. It is set up for a remote reservoir, and the reservoir itself is not included.
