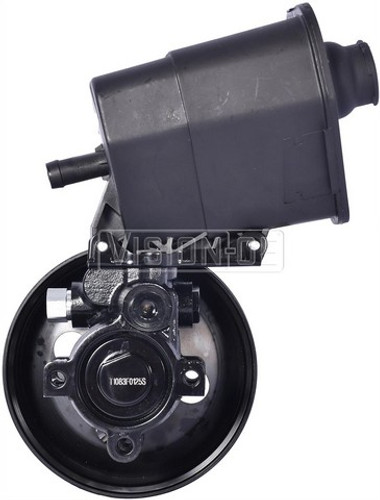

TERREPOWER N720-01125A2 power steering pump for the 2003-2007 Dodge Ram 2500 and other vehicles pushes hydraulic fluid to the steering gear to help you turn the wheel. It is a new hydraulic pump.
- Cast iron housing
- Reservoir and press-on pulley included, for a serpentine belt drive
- Threaded outlet with an O-ring pressure port, and a hose clamp on the return port
- One inlet, 0.629 inch in diameter, connected to the reservoir
Quick facts
- Part: TERREPOWER N720-01125A2 power steering pump
- Fits: 2003-2007 Dodge Ram 2500 and other vehicles
- Material: Cast iron (housing)
- Condition: New
A whine or groan when turning, a heavy-feeling wheel or fluid around the pump can mean it is wearing out. Hoses, the drive belt, low fluid or the steering gear can be behind those signs too, so find the cause before buying a pump.
Fits
This pump works as a replacement for the 2003-2007 Dodge Ram 2500 and the 2003-2007 Dodge Ram 3500. Either truck needs a single pump.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 3
- Inlet diameter: 0.629 in
- Outlet thread size: M16X1.50
- Pressure port size: M16x1.5
- Return port size: 16 mm
Build and materials
- Type: hydraulic
- Housing material: cast iron
- Pulley: press-on, for a serpentine belt
- Pressure port attachment: O-ring
- Return port attachment: hose clamp
- Condition: New
- Country of origin: China
In the box
One power steering pump with its reservoir, pulley and installation kit. A reservoir cap, filter and sensor are not included.
Interchange: 52113925A · 52113925AI · 68044144AC
This part cross-references / interchanges with the following part numbers:
52113925A, 52113925AI, 68044144AC
Frequently Asked Questions
Is this a Ram 2500 power steering pump for the 2003-2007 model years?
Yes. TERREPOWER N720-01125A2 fits the 2003-2007 Dodge Ram 2500, and the truck takes one pump.
Does the same pump work as a Ram 3500 power steering pump for the 2003-2007 model years?
Yes. The 2003-2007 Dodge Ram 3500 is also covered, and it takes one pump as well.
Does this power steering pump come with the reservoir and pulley?
Yes. The pump comes with its reservoir, pulley and an installation kit. A reservoir cap, filter and sensor are not included.
What size are the ports on the TERREPOWER N720-01125A2?
The pressure port is M16x1.5 with an O-ring attachment, and the outlet thread is M16X1.50. The return port is 16 mm and uses a hose clamp.
What type of belt does the pulley on this power steering pump take?
The pulley is a press-on type made for a serpentine belt, and it is included with the pump.
