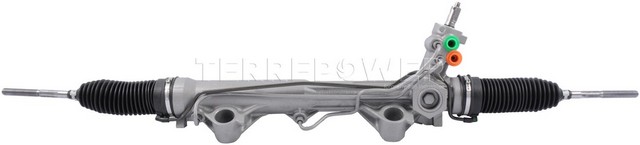

TERREPOWER 101-0148 rack and pinion for the 2001-2011 Ford Ranger and other vehicles is a remanufactured hydraulic unit that turns steering wheel motion into side-to-side wheel movement. Hydraulic assist from the power steering system reduces the effort needed to turn.
- Remanufactured hydraulic power steering unit designed for dependability throughout the vehicle's service life
- 4.063 total turns lock to lock
- Pressure port thread size 11mm and return port thread size 9.5mm
- Steering input shaft 0.75 inch in diameter and 1.5 inches long
Quick facts
- Part: TERREPOWER 101-0148 rack and pinion
- Also called: rack and pinion assembly
- Fits: 2001-2011 Ford Ranger and other vehicles
- Condition: Remanufactured
Loose or heavy steering, a clunk when turning, or fluid wetness around the rack can mean the rack is wearing out. Worn outer tie rods, a tired power steering pump or a leaking hose can produce similar symptoms, so track down the actual cause before you buy a rack.
Fits
The 2001-2011 Ford Ranger, the 2001-2006 Mazda B3000 and the 2002-2003 Ford Explorer Sport all take this rack and pinion, and so do other vehicles. If yours is not one of these, look it up in the "Vehicles it fits" section to see its own year range.
Specifications
Fit and size
- Quantity per vehicle: 1
- Total turns lock to lock: 4.063
- Steering input shaft diameter: 0.75 in
- Input shaft length: 1.5 in
- End to end length: 44.75 in
- Mounting hole quantity: 2
- Pressure port thread size: 11mm
- Return port thread size: 9.5mm
Build and materials
- Type: Hydraulic
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured rack and pinion with inner tie rods included. Outer tie rods and bushings are not included. This listing holds one unit, and the vehicle takes one.
Frequently Asked Questions
Is this a rack and pinion for the 2001-2011 Ford Ranger?
Yes, TERREPOWER 101-0148 fits the 2001-2011 Ford Ranger. For any other vehicle, look it up in the "Vehicles it fits" section.
Does this rack and pinion assembly come with tie rods?
Inner tie rods are included. Outer tie rods and bushings are not included, so they are bought separately.
Which port thread sizes does the TERREPOWER 101-0148 have?
The pressure port thread size is 11mm and the return port thread size is 9.5mm. The unit has two mounting holes.
What can a worn hydraulic rack and pinion feel like when I steer?
Play or heaviness in the steering wheel, a clunk when turning, or fluid wetness near the rack can each mean the rack is wearing out.
How many turns lock to lock does this steering rack have?
TERREPOWER 101-0148 has 4.063 total turns lock to lock. Its steering input shaft is 0.75 inch in diameter and 1.5 inches long.
