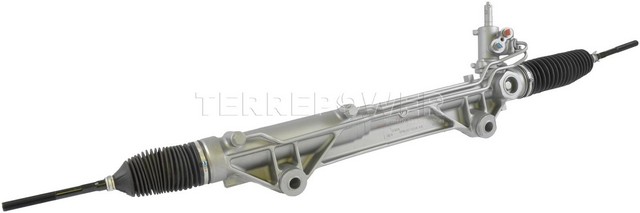

TERREPOWER 101-0237 rack and pinion for the 2009-2010 Ford F-150 is a remanufactured hydraulic unit that turns steering wheel rotation into side-to-side wheel motion. This rack and pinion assembly is designed for dependability and reliability throughout the vehicle's service life.
- Pressure port and return port for the power steering lines
- 3.25 total turns lock to lock
- Inner tie rods and bushings included
- Steering input shaft diameter of 19.05 mm (0.75 in)
Quick facts
- Part: TERREPOWER 101-0237 rack and pinion
- Also called: rack and pinion assembly
- Fits: 2009-2010 Ford F-150
- Condition: Remanufactured
Loose or wandering steering, fluid seeping at the rack and pinion, or noise when turning can mean it is worn. A leaking power steering hose, a weak pump, worn outer tie rod ends or worn suspension joints can be behind the same signs, so find the cause before buying. The 2009-2010 Ford F-150 takes one, and this listing is one unit.
Fits
This rack and pinion fits the 2009-2010 Ford F-150.
Specifications
Fit and size
- Quantity per vehicle: 1
- End to end length: 1409.7 mm (55.5 in)
- Distance between mounting holes: 430.276 mm (16.94 in)
- Mounting holes: 2
- Input shaft length: 49.2 mm (1.937 in)
- Pressure port thread size: 0.49
- Return port thread size: 0.438
Build and materials
- Type: Hydraulic
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One rack and pinion unit. Outer tie rods are not included.
Interchange: 9L3Z-3504-B · AL3Z-3504-C
Frequently Asked Questions
Is the TERREPOWER 101-0237 the right rack and pinion for a 2009-2010 Ford F-150?
Yes. TERREPOWER 101-0237 fits the 2009-2010 Ford F-150, and the truck takes one rack and pinion.
Does this remanufactured rack and pinion come with tie rods?
The TERREPOWER 101-0237 includes the inner tie rods and bushings. Outer tie rods are not included, so they are bought separately.
What are the port thread sizes on this rack and pinion?
The pressure port thread size is 0.49 and the return port thread size is 0.438, as listed for this unit.
What signs can a worn power steering rack and pinion show?
Loose or wandering steering, fluid seeping and noise when turning can all point to a worn rack and pinion. A shop can test the steering system to confirm.
Does 9L3Z-3504-B interchange with this rack and pinion?
Yes. 9L3Z-3504-B is one of the numbers TERREPOWER 101-0237 replaces, along with AL3Z-3504-C.
