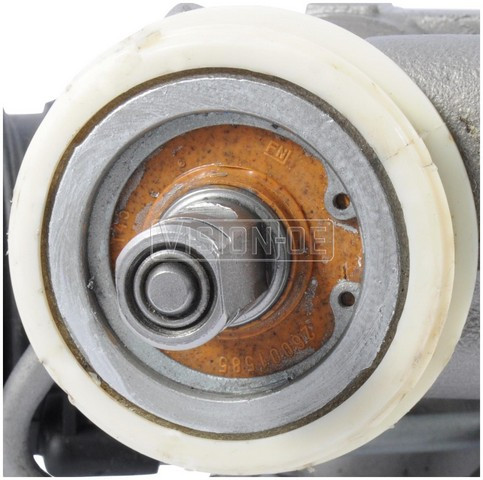

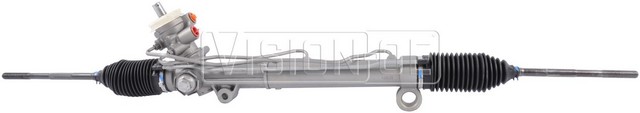

TERREPOWER 103-0138 rack and pinion for the 1995-2005 Chevrolet Cavalier and other vehicles turns steering wheel input into side-to-side motion of the wheels. This is a remanufactured hydraulic power steering unit.
- Hydraulic power steering design
- Designed for dependability and reliability throughout the service life of the vehicle
- Inner tie rods and bushings included
- 2.625 total turns lock to lock
Quick facts
- Part: TERREPOWER 103-0138 rack and pinion
- Also called: rack and pinion assembly
- Fits: 1995-2005 Chevrolet Cavalier and other vehicles
- Condition: Remanufactured
Fluid leaking at the rack, noise when turning, heavy steering or looseness in the wheel can point to a worn rack and pinion assembly. The power steering pump, hoses and tie rods can be behind these signs too, so find which one is at fault before you buy. If the rack is the cause, this unit replaces it.
Fits
This rack and pinion fits the 1995-2005 Chevrolet Cavalier and the 1995-2005 Pontiac Sunfire; the quantity per car is one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 2, spaced 314.452 mm (12.38 in) apart
- End-to-end length: 1155.7 mm (45.5 in)
- Input shaft diameter: 15.88 mm (0.625 in)
- Input shaft length: 28.58 mm (1.125 in)
- Pressure port and return port thread size: M16X1.50
Build and materials
- Type: Hydraulic
- Condition: Remanufactured
- Inner tie rods: included
- Bushings: included
- Outer tie rods: not included
- Country of origin: Mexico
In the box
One remanufactured rack and pinion with inner tie rods and bushings. Outer tie rods are not included.
Interchange: 19320470
Frequently Asked Questions
Is this the right Cavalier rack and pinion for the 1995-2005 Chevrolet Cavalier?
Yes. TERREPOWER 103-0138 fits the 1995-2005 Chevrolet Cavalier, and the car takes one.
Is there a Pontiac Sunfire rack and pinion here for the 1995-2005 Pontiac Sunfire?
Yes. TERREPOWER 103-0138 also fits the 1995-2005 Pontiac Sunfire, and that car takes one.
Are the tie rods included with this rack and pinion?
The inner tie rods and bushings are included. The outer tie rods are not, so they are bought separately.
What thread size are the ports on this rack and pinion?
Both the pressure port and the return port on this rack and pinion are M16X1.50.
Is 19320470 an interchange number for this rack and pinion?
Yes. 19320470 is listed as a number that TERREPOWER 103-0138 replaces.
