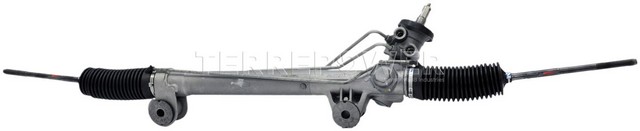

TERREPOWER 103-0167 rack and pinion for the 1999-2006 Chevrolet Silverado 1500 and other vehicles turns steering wheel rotation into wheel movement. It is a remanufactured hydraulic power steering unit designed for dependability and reliability throughout the vehicle's service life.
- Inner tie rods are included with the unit
- Bushings are included
- Pressure port and return port both use an M16X1.50 thread
- Input shaft is 53.98 mm long and 20.64 mm in diameter
Quick facts
- Part: TERREPOWER 103-0167 rack and pinion
- Also called: rack and pinion assembly
- Fits: 1999-2006 Chevrolet Silverado 1500 and other vehicles
- Condition: Remanufactured
Heavy or loose steering, a groan when turning or fluid around the rack can mean the rack is worn. These signs alone do not prove the rack is the problem, since a worn outer tie rod can also give a loose feel.
Fits
The 1999-2006 Chevrolet Silverado 1500, the 1999-2006 GMC Sierra 1500 and the 2007 Chevrolet Silverado 1500 Classic all fit this rack and pinion, along with more vehicles.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting hole quantity: 2
- Distance between mounting holes: 14.88 in (377.952 mm)
- End to end length: 50.5 in (1282.7 mm)
- Input shaft length: 2.125 in (53.98 mm)
- Steering input shaft diameter: 0.813 in (20.64 mm)
- Pressure port thread size: M16X1.50
- Return port thread size: M16X1.50
- Total turns lock to lock: 3.375
Build and materials
- Type: Hydraulic
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured rack and pinion with inner tie rods and bushings. Outer tie rods are not included. This listing holds one rack and pinion, and each vehicle takes one.
Interchange: 19133675 · 19320495 · 26079794 · 26079801 · 26087761 · 26091958 · 26101929 · 88963415
This part cross-references / interchanges with the following part numbers:
19133675, 19320495, 26079794, 26079801, 26087761, 26091958, 26101929, 88963415
Frequently Asked Questions
Is this a GMC Sierra 1500 rack and pinion for the 1999-2006 model years?
Yes. TERREPOWER 103-0167 fits the 1999-2006 GMC Sierra 1500. If your truck is something else, look it up in the "Vehicles it fits" section on this page.
Is this the rack and pinion for a 2002 Chevy Silverado 1500?
Yes. A 2002 model sits inside the 1999-2006 Chevrolet Silverado 1500 fitment, and this TERREPOWER 103-0167 rack and pinion fits it.
What thread size are the ports on this rack and pinion?
Both the pressure port and the return port are M16X1.50. The input shaft is 53.98 mm (2.125 in) long and 20.64 mm (0.813 in) in diameter.
Does this rack and pinion assembly come with tie rods?
Yes, for the inner ones: inner tie rods and bushings are included with TERREPOWER 103-0167. Outer tie rods are not included, so they are ordered separately.
How many turns lock to lock does this rack have?
The total is 3.375 turns lock to lock. The two mounting holes are 14.88 in (377.952 mm) apart, and the unit is 50.5 in (1282.7 mm) end to end.
