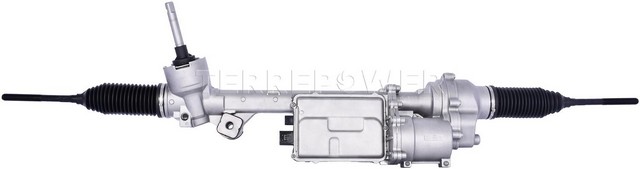

TERREPOWER 201-0167E rack and pinion for the 2015-2016 Ford F-150 is a remanufactured power steering unit that turns steering wheel input into wheel movement.
- Remanufactured unit designed for dependability and reliability throughout the vehicle's service life
- 3.75 total turns lock to lock
- Steering input shaft 0.75 in in diameter and 5.063 in long
- Two mounting holes and 55.38 in end-to-end length
Quick facts
- Part: TERREPOWER 201-0167E rack and pinion
- Also called: rack and pinion assembly
- Fits: 2015-2016 Ford F-150
- Condition: Remanufactured
Hard or uneven steering, a clunk or whine when you turn the wheel, or a steering warning light can mean this rack and pinion assembly is worn, though worn tie rod ends or ball joints can produce similar symptoms, so find the cause before you replace it.
Fits
It is a direct-fit replacement for the 2015-2016 Ford F-150.
Specifications
Fit and size
- Quantity per vehicle: 1
- End-to-end length: 55.38 in
- Input shaft length: 5.063 in
- Steering input shaft diameter: 0.75 in
- Mounting holes: 2
- Total turns lock to lock: 3.75
- Connector A: 2 pins
- Connector B: 3 pins
Build and materials
- Condition: Remanufactured
- Motor: included
- Control module: included
- Country of origin: Mexico
In the box
One rack and pinion with its motor and control module. This listing is one unit, and the 2015-2016 Ford F-150 takes one.
Interchange: FL3Z-3504-C · GL3Z-3504-C
Frequently Asked Questions
Does the TERREPOWER 201-0167E fit the 2015-2016 Ford F-150?
Yes. TERREPOWER 201-0167E is a direct-fit replacement for the 2015-2016 Ford F-150, and the truck takes one.
Does this remanufactured rack and pinion come with the motor and control module?
Yes. The TERREPOWER 201-0167E includes both the motor and the control module with the rack and pinion, so they do not need to be bought separately.
How many turns lock to lock does this rack have, and what size is the input shaft?
Total travel is 3.75 turns lock to lock. The steering input shaft is 0.75 inch in diameter and 5.063 inches long.
What signs can a worn rack and pinion with a motor and control module show?
Stiff or uneven steering, a clunk or whine when turning, or a steering warning light can mean the unit is worn. A shop can test the motor and control module.
Does the 201-0167E replace FL3Z-3504-C?
Yes. FL3Z-3504-C and GL3Z-3504-C are both numbers this rack and pinion replaces.
