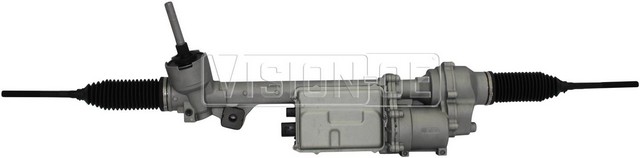

TERREPOWER 201-0170E rack and pinion for the 2017 Ford F-150 is a remanufactured electric power steering unit that steers the wheels. This 2017 Ford F-150 rack and pinion assembly is designed for dependability and reliability throughout the vehicle's service life.
- Electric-type power steering rack with motor and control module included
- 3.25 total turns lock to lock
- Two electrical connectors: one 2-pin and one 3-pin
- Two mounting holes
Quick facts
- Part: TERREPOWER 201-0170E rack and pinion
- Also called: rack and pinion assembly
- Fits: 2017 Ford F-150
- Condition: Remanufactured
A steering wheel that feels loose or heavy, a clunk or noise when turning, or a steering warning light can mean the rack is worn. Worn outer tie rods, tires or suspension joints can be behind those signs too, so find the cause before buying a rack. If the rack is the cause, this unit replaces it.
Fits
This is a direct-fit replacement for the 2017 Ford F-150, which takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- End to end length: 1435 mm (56.5 in)
- Input shaft length: 125.22 mm (4.93 in)
- Input shaft diameter: 18.54 mm (0.73 in)
Build and materials
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One rack and pinion with its inner tie rods. Outer tie rods are not included.
Interchange: HL3Z-3504-G · HL3Z-3504-N
Frequently Asked Questions
Is the TERREPOWER 201-0170E rack and pinion right for a 2017 Ford F-150?
Yes. TERREPOWER 201-0170E is a direct-fit replacement for the 2017 Ford F-150, and the truck takes one.
Are the outer tie rods included with this electric rack and pinion?
No. TERREPOWER 201-0170E includes the inner tie rods, motor and control module, but the outer tie rods are not included.
How long is the input shaft on this electric rack and pinion?
The input shaft is 125.22 mm (4.93 in) long and 18.54 mm (0.73 in) in diameter. The rack measures 1435 mm (56.5 in) end to end.
Can a steering warning light mean the electric rack needs replacing?
It can, but a steering warning light can have other causes. A shop can test the electric steering system, and it is best to have it looked at promptly.
Does TERREPOWER 201-0170E replace part number HL3Z-3504-G?
Yes. HL3Z-3504-G is one of two interchange numbers for this unit; the other is HL3Z-3504-N.
