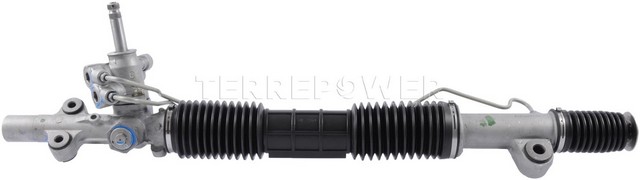

TERREPOWER 305-0135 rack and pinion for the 2001-2002 Honda Civic and other vehicles moves the tie rods side to side to steer the wheels. This remanufactured hydraulic unit, also called a rack and pinion assembly, replaces a worn rack and pinion.
- Remanufactured hydraulic power steering rack and pinion unit
- Designed for dependability and reliability throughout the service life of the vehicle
- Inner tie rods and bushings are included with the unit
- Total turns lock to lock: 2.875
- M16X1.50 thread on both the pressure port and the return port
Quick facts
- Part: TERREPOWER 305-0135 rack and pinion
- Also called: rack and pinion assembly
- Fits: 2001-2002 Honda Civic and other vehicles
- Condition: Remanufactured
Heavy or loose steering, fluid seeping at the ends or noise when you turn can be signs of a worn rack and pinion. A power steering pump, a hose, a tie rod or a worn suspension joint can be behind these signs too, so find the cause before you buy. One unit serves both wheels, so the car takes a single rack and pinion.
Fits
This rack and pinion fits the 2001-2002 Honda Civic and the 2001-2002 Acura EL.
Specifications
Fit and size
- Quantity per vehicle: 1
- Total turns lock to lock: 2.875
- End-to-end length: 37.75 in (958.85 mm)
- Input shaft length: 2.25 in (57.15 mm)
- Steering input shaft diameter: 0.681 in (17.3 mm)
- Mounting holes: 3, spaced 2.56 in (65.024 mm) apart
- Pressure port thread: M16X1.50
- Return port thread: M16X1.50
Build and materials
- Type: Hydraulic
- Condition: Remanufactured
- Inner tie rods: included
- Outer tie rods: not included
- Bushings: included
- Country of origin: Mexico
In the box
One remanufactured rack and pinion with inner tie rods and bushings. Outer tie rods are not included.
Frequently Asked Questions
Is this the 2001-2002 Honda Civic rack pinion unit?
Yes. TERREPOWER 305-0135 fits the 2001-2002 Honda Civic, and the car takes one unit.
Will this work as an EL rack and pinion for the 2001-2002 Acura EL?
Yes. This rack and pinion fits the 2001-2002 Acura EL, and the car takes one unit.
Are tie rods included with this remanufactured rack and pinion?
The inner tie rods and bushings are included. The outer tie rods are not, so they are ordered separately.
How many turns lock to lock does this rack and pinion have?
TERREPOWER 305-0135 has 2.875 total turns lock to lock. Its input shaft is 2.25 in (57.15 mm) long and 0.681 in (17.3 mm) in diameter.
Is this rack and pinion hydraulic, and what are the port threads?
Yes, it is a hydraulic unit. Both the pressure port and the return port use an M16X1.50 thread.
