TERREPOWER 305-0151 rack and pinion for the 1999-2004 Honda Odyssey is a remanufactured hydraulic power steering unit that turns the steering wheel's rotation into the sideways motion that steers the car.
- Made for dependable, reliable service throughout the vehicle's service life
- Total turns lock to lock: 3.438
- Inner tie rods and bushings are included
Fluid wetness around the rack, a loose or wandering feel, or a noise when you turn can all point to a worn rack. They can also come from the tie rods, a hose or the pump. Before you replace the rack, look for leaks and read the power steering fluid level with the engine off and cool, and leave further testing to a shop.
As a 1999-2004 Honda Odyssey rack and pinion, it is a direct-fit replacement.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 2, 103.124 mm (4.06 in) apart
- End to end length: 1358.9 mm (53.5 in)

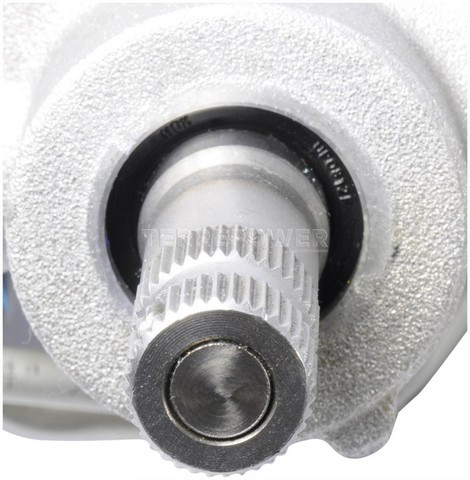

- Input shaft length: 144.46 mm (5.688 in)
- Input shaft diameter: 16.62 mm (0.654 in)
- Pressure port thread: M14X1.50
- Return port thread: M16X1.50
Build and materials
- Type: Hydraulic
- Condition: Remanufactured
- Country of origin: Mexico
In the box
This listing holds one rack and pinion, and the 1999-2004 Honda Odyssey takes one. Outer tie rods are not included.
Interchange: 53010-S0X-A01 · 53010-S0X-A02 · 53010-SV4-000 · 53601-S0X-A01 · 53601-S0X-A03 · 53601-S0X-A04
This part cross-references / interchanges with the following part numbers:
53010-S0X-A01, 53010-S0X-A02, 53010-SV4-000, 53601-S0X-A01, 53601-S0X-A03, 53601-S0X-A04
Frequently Asked Questions
Will this work as a 2003 Honda Odyssey rack and pinion or a 2000 Honda Odyssey rack and pinion?
Yes. TERREPOWER 305-0151 fits the 1999-2004 Honda Odyssey, so both the 2003 and the 2000 model years are covered.
Does this TERREPOWER rack and pinion assembly come with tie rods?
This rack and pinion includes the inner tie rods and bushings. The outer tie rods are not included.
What thread sizes are the ports on TERREPOWER 305-0151?
The pressure port thread is M14X1.50 and the return port thread is M16X1.50 on TERREPOWER 305-0151.
How far apart are the mounting holes on this rack and pinion?
The two mounting holes on this rack and pinion are 103.124 mm (4.06 in) apart.
Does 305-0151 replace the 53601-S0X-A03 number?
Yes. TERREPOWER 305-0151 is listed as a replacement for 53601-S0X-A03, along with the other numbers on the Interchange line.
