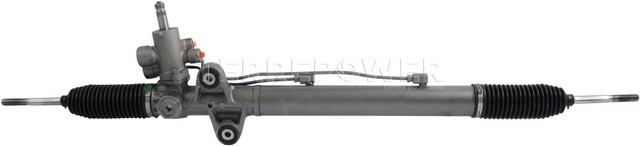

TERREPOWER 305-0159 rack and pinion for the 2003-2006 Acura MDX is a remanufactured hydraulic unit that turns steering wheel input into wheel movement. This power steering rack and pinion assembly is intended to replace a worn or leaking rack.
- Remanufactured power steering unit designed for dependability throughout the vehicle's service life
- Hydraulic steering rack with 3.188 total turns lock to lock
- Inner tie rods and bushings included
- Two mounting holes set 139.7 mm apart
Quick facts
- Part: TERREPOWER 305-0159 rack and pinion
- Also called: rack and pinion assembly
- Fits: 2003-2006 Acura MDX
- Condition: Remanufactured
Fluid wetness on the rack, loose or heavy steering, or noise when turning can mean the rack is worn. Before you replace it, rule out the outer tie rods, the power steering hoses and the pump, since those parts can show similar signs and a shop can test the system.
Fits
This rack and pinion fits the 2003-2006 Acura MDX.
Specifications
Fit and size
- Quantity per vehicle: 1
- Distance between mounting holes: 139.7 mm (5.5 in)
- Mounting holes: 2
- End-to-end length: 1119.19 mm (44.063 in)
- Input shaft length: 46.48 mm (1.83 in)
- Input shaft diameter: 17.53 mm (0.69 in)
- Pressure and return port thread size: M16X1.50 each
Build and materials
- Type: Hydraulic
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured rack and pinion; the outer tie rods are not included. This listing holds one unit, and the 2003-2006 Acura MDX takes one.
Frequently Asked Questions
Is the TERREPOWER 305-0159 the right rack and pinion for a 2004 Acura MDX?
Yes. TERREPOWER 305-0159 fits the 2003-2006 Acura MDX, which includes the 2004 model year.
Does the TERREPOWER 305-0159 come with tie rods?
This TERREPOWER 305-0159 includes the inner tie rods and bushings. The outer tie rods are not included.
What thread size are the ports on this rack and pinion?
The pressure port and the return port are both M16X1.50.
How can I tell if a power steering rack is leaking or worn?
With the engine off and cool, look for fluid wetness around the rack and its boots. While driving, notice loose or heavy steering or noise when turning; a shop can test it.
Is the TERREPOWER 305-0159 remanufactured?
Yes. TERREPOWER 305-0159 is a remanufactured hydraulic power steering rack, designed for dependability throughout the vehicle's service life.
