TERREPOWER 305-0194 rack and pinion for the 2011-2017 Honda Odyssey turns steering wheel rotation into the side-to-side movement that steers the wheels. This remanufactured hydraulic rack and pinion assembly can replace one that is worn or leaking.
- Designed for dependability and reliability throughout the vehicle's service life
- Steering travel of 3.5 turns lock to lock
- Pressure port thread M14X1.50 and return port thread M16X1.50

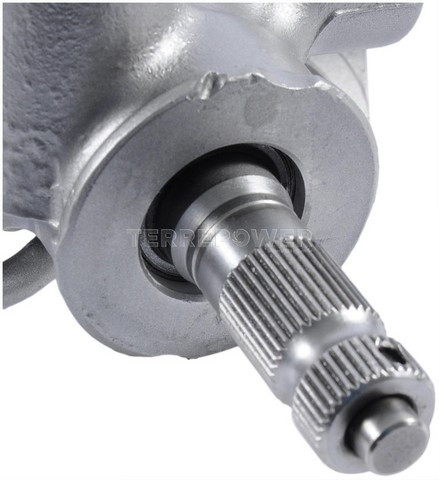

- Input shaft 15.64 mm (0.616 in) in diameter and 66.68 mm (2.625 in) long
Quick facts
- Part: TERREPOWER 305-0194 rack and pinion
- Also called: rack and pinion assembly
- Fits: 2011-2017 Honda Odyssey
- Condition: Remanufactured
Heavy or loose steering, a groan or clunk when turning, or fluid near the steering can each mean the rack and pinion is worn. With the engine off, look at the power steering reservoir and the hose fittings you can see from above. A leaking hose or pump can look like a rack and pinion leak, so find the source before replacing it.
Fits
It is a direct-fit replacement for the 2011-2017 Honda Odyssey, which takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 2, spaced 106.363 mm (4.188 in) apart
- End-to-end length: 1416.05 mm (55.75 in)
Build and materials
- Type: Hydraulic
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One rack and pinion with inner tie rods and bushings. Outer tie rods are not included.
Interchange: 53601-TK8-A01
Frequently Asked Questions
Is the TERREPOWER 305-0194 rack and pinion right for a 2011-2017 Honda Odyssey?
Yes. TERREPOWER 305-0194 fits the 2011-2017 Honda Odyssey, and each one takes a single rack.
Are the inner tie rods included with this rack and pinion?
Yes, the inner tie rods and bushings are included. The outer tie rods are not included.
What thread sizes are the pressure and return ports on this rack and pinion?
On TERREPOWER 305-0194, the pressure port thread is M14X1.50 and the return port thread is M16X1.50.
How can I tell if my rack and pinion is leaking?
Fluid dripping near the steering, a falling reservoir level or a wet, torn boot can be signs. A shop can inspect the rack and pinion itself.
How many turns lock to lock does this rack and pinion have?
This hydraulic rack and pinion has 3.5 turns lock to lock.
