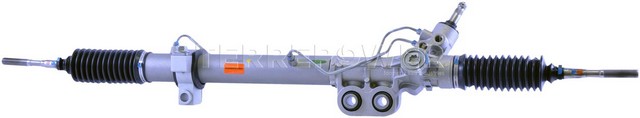

TERREPOWER 310-0163 rack and pinion for the 2005-2015 Nissan Armada and other vehicles turns steering wheel input into wheel movement. This remanufactured rack and pinion assembly is a hydraulic power steering unit.
- Pressure and return ports both threaded M16X1.50
- 3.625 total turns lock to lock
- Input shaft 19.05 mm in diameter and 53.98 mm long
- Designed for dependability and reliability throughout the service life of the vehicle
Quick facts
- Part: TERREPOWER 310-0163 rack and pinion
- Also called: rack and pinion assembly
- Fits: 2005-2015 Nissan Armada and other vehicles
- Condition: Remanufactured
Steering that feels loose, a power steering fluid leak near the rack or a groan when you turn the wheel can mean the rack is worn. A worn outer tie rod, a tired power steering pump or a leaking hose can be behind those signs too, so find the cause before you buy a new rack.
Fits
As a rack and pinion replacement for the 2005-2015 Nissan Armada, it also fits the 2004-2015 Nissan Titan and the 2004-2010 Infiniti QX56, among other vehicles. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 2, spaced 2.25 in (57.15 mm) apart
- Pressure port thread size: M16X1.50
- Return port thread size: M16X1.50
- Total turns lock to lock: 3.625
- Input shaft length: 2.125 in (53.98 mm)
- Steering input shaft diameter: 0.75 in (19.05 mm)
- End to end length: 49.25 in (1250.95 mm)
Build and materials
- Type: Hydraulic
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured rack and pinion with its inner tie rods and bushings. Outer tie rods are not included. This listing holds one unit, and each vehicle takes one.
Interchange: 49001-ZH50A
19320901
Frequently Asked Questions
Is 310-0163 the right rack and pinion for the 2004-2015 Nissan Titan?
Yes. TERREPOWER 310-0163 fits the 2004-2015 Nissan Titan. For another model, check the "Vehicles it fits" section.
Is TERREPOWER 310-0163 a 2008 Nissan Armada rack and pinion?
Yes. It fits the 2005-2015 Nissan Armada, and that range covers the 2008 model year.
Are the outer tie rods included with this remanufactured rack and pinion?
No. TERREPOWER 310-0163 comes with the inner tie rods and bushings, but the outer tie rods are not included.
What thread size are the ports on this rack and pinion?
Both the pressure port and the return port are M16X1.50.
Does 49001-ZH50A cross to this rack and pinion?
Yes. 49001-ZH50A is listed as an interchange number for TERREPOWER 310-0163.
