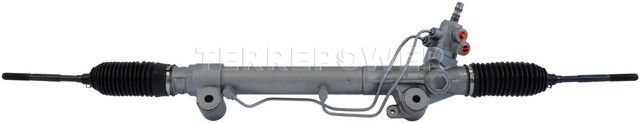

TERREPOWER 311-0236 rack and pinion for the 2010-2024 Toyota 4Runner is a remanufactured hydraulic unit that turns steering wheel input into wheel movement.
- Hydraulic power steering rack, remanufactured for dependability and reliability throughout the vehicle's service life
- Total of 2.75 turns lock to lock
- Inner tie rods and bushings included
Quick facts
- Part: TERREPOWER 311-0236 rack and pinion
- Also called: rack and pinion assembly
- Fits: 2010-2024 Toyota 4Runner
- Condition: Remanufactured
A worn rack can show up as loose or wandering steering, a power steering fluid leak at the rack, or noise when turning. These signs alone do not prove the rack is at fault, since a weak power steering pump can cause similar heaviness. If the rack is the cause, this rack and pinion assembly replaces it.
Fits
This rack and pinion fits the 2010-2024 Toyota 4Runner, and each vehicle takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Total turns lock to lock: 2.75
- End to end length: 49.25 in (1250.95 mm)
- Input shaft length: 1.625 in (41.28 mm)
- Steering input shaft diameter: 0.686 in (17.42 mm)
- Pressure port thread size: 17mmX1.5
- Return port thread size: 16mmX1.5
Build and materials
- Type: Hydraulic
- Condition: Remanufactured
- Inner tie rods: included
- Bushings: included
- Outer tie rods: not included
- Country of origin: Mexico
In the box
One remanufactured rack and pinion with inner tie rods and bushings. Outer tie rods are not included.
Interchange: 44200-35091 · 44200-35092 · 44200-35093 · 44200-35094
This part cross-references / interchanges with the following part numbers:
44200-35091, 44200-35092, 44200-35093, 44200-35094
Frequently Asked Questions
Is this steering rack right for the 2010-2024 Toyota 4Runner?
Yes. TERREPOWER 311-0236 is a rack and pinion for the 2010-2024 Toyota 4Runner, and each vehicle takes one.
Do the inner tie rods come with this TERREPOWER rack?
Yes, the inner tie rods and bushings are included. The outer tie rods are not, so they are bought separately.
What thread sizes are the ports on the 311-0236 rack?
On TERREPOWER 311-0236, the pressure port thread is 17mmX1.5 and the return port thread is 16mmX1.5.
Can a power steering fluid leak at the rack mean it needs replacing?
It can. With the engine off and cool, look for wet fluid on the rack; leaks, loose steering or noise when turning can be signs of wear, and a shop can test it.
Does TERREPOWER 311-0236 replace part number 44200-35091?
Yes. 44200-35091 is among the numbers this rack and pinion replaces, along with 44200-35092, 44200-35093 and 44200-35094.
