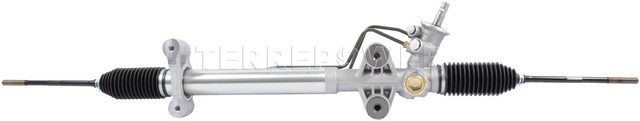

Turn every input at the steering wheel into hydraulically assisted steering motion with the TERREPOWER (formerly BBB Industries) Rack and Pinion N103-0193. This is a new power steering rack and pinion designed for dependable, reliable service. It is a direct-fit replacement for the 2003-2014 Chevrolet Express 1500, the 2003-2014 GMC Savana 1500, the 2003-2006 Chevrolet Express 2500 and the 2003-2006 GMC Savana 2500 (engine: All).
This hydraulic rack uses pressurized fluid from the power steering pump to assist the driver. It converts the rotation of the input shaft into the side-to-side rack movement that steers the wheels. Signs a rack may need replacing include fluid leaking from the unit, loose or wandering steering, and stiff or uneven steering effort. These symptoms can have other causes, so diagnose the steering system first. If a failed rack is the cause, this unit replaces it.
- Included components: The unit comes with inner tie rods and bushings. Outer tie rods are not included.
- Hydraulic ports: The pressure port has an M18X1.50 thread and the return port has an M16X1.50 thread.
- Steering specs: 3.25 total turns lock to lock. The input shaft is 1.75 in (44.45 mm) long with a 0.813 in (20.638 mm) diameter.
- Mounting and size: Four mounting holes, with 4 in (101.6 mm) between mounting holes. End-to-end length is 53.5 in (1358.9 mm).
The listed applications use one per vehicle, and one unit is supplied. Country of origin: China.
Interchange: 19207099 · 19320506 · 19330564
This part cross-references / interchanges with the following part numbers:
19207099, 19320506, 19330564
