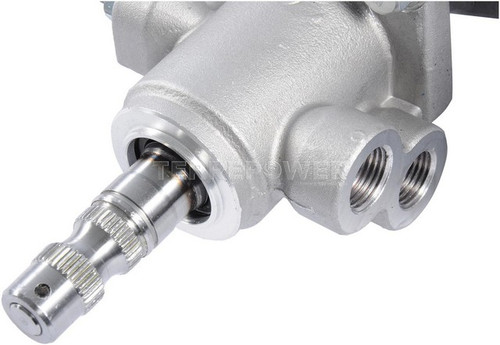

TERREPOWER N311-0110 rack and pinion for the 1996-2000 Toyota RAV4 turns the steering wheel's rotation into the sideways push that points the wheels. This is a new hydraulic power steering unit, designed for dependable service over the life of the vehicle.
- New hydraulic power steering rack and pinion
- Inner tie rods included
- Bushings included
- 2.688 total turns lock to lock
Quick facts
- Part: TERREPOWER N311-0110 rack and pinion
- Also called: rack and pinion assembly
- Fits: 1996-2000 Toyota RAV4
- Condition: New
Looseness in the steering wheel, a groan or clunk when turning, or fluid seeping at the rack ends can be signs of a worn rack. Before you replace the rack, rule out worn outer tie rod ends, a leaking hose and a slipping pump belt, since worn tie rod ends can add play while a leaking hose or slipping belt can add noise or heavy steering.
Fits
TERREPOWER N311-0110 is a direct-fit replacement for the 1996-2000 Toyota RAV4, which takes a single rack with a tie rod at each end.
Specifications
Fit and size
- Quantity per vehicle: 1
- End to end length: 46.75 in
- Steering input shaft diameter: 0.688 in
- Input shaft length: 1.563 in
- Mounting holes: 2
- Total turns lock to lock: 2.688
Build and materials
- Type: Hydraulic
- Condition: New
- Inner tie rods: included
- Bushings: included
- Country of origin: China
In the box
One power steering rack and pinion with inner tie rods and bushings. Outer tie rods are not included.
Frequently Asked Questions
Will the TERREPOWER N311-0110 rack and pinion fit a 1996-2000 Toyota RAV4?
Yes. TERREPOWER N311-0110 is a hydraulic power steering rack and pinion for the 1996-2000 Toyota RAV4, and that vehicle takes one.
Does this rack and pinion assembly come with tie rods?
Partly. TERREPOWER N311-0110 includes the inner tie rods and bushings, but the outer tie rods are not included and are ordered separately.
What size is the steering input shaft on this rack?
The steering input shaft on this rack has a diameter of 0.688 in and a length of 1.563 in.
How can I tell if this kind of hydraulic steering rack is wearing out?
Play in the steering wheel, a groan or clunk when turning, or fluid seeping at the rack ends can be signs. A shop can test the system to confirm the cause.
Is the N311-0110 a hydraulic or an electric steering rack?
Hydraulic. This N311-0110 is a new power steering rack and pinion with 2 mounting holes and an end-to-end length of 46.75 in.
