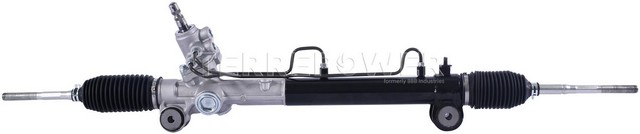

Help keep every turn of the steering wheel power-assisted with a new rack and pinion for the 2002-2006 Toyota Camry, the TERREPOWER (formerly BBB Industries) N311-0173 hydraulic power steering rack and pinion. It converts that rotation into the side-to-side movement that steers the wheels, with hydraulic assist to help reduce steering effort. It is a direct-fit replacement for the listed application, the 2002-2006 Toyota Camry (all engines), at one per vehicle.
This premium-quality unit is designed for dependability and reliability.
- Hydraulic connections: Pressure port thread size is M16X1.50, and return port thread size is M17X1.50.
- What's included: Inner tie rods and bushings are included. Outer tie rods are not included.

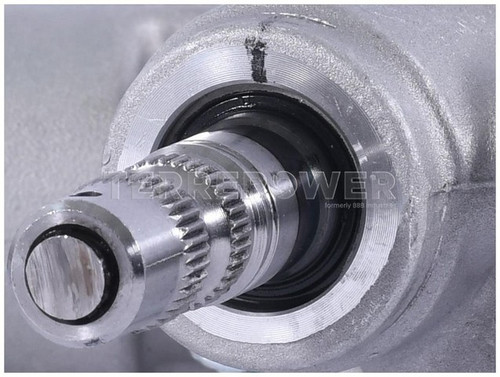

- Steering specs: 3.188 turns lock to lock. The input shaft is 0.75 in (19.05 mm) in diameter and 2 in (50.8 mm) long.
- Mounting: 2 mounting holes spaced 19.13 in (485.902 mm) apart, with an end-to-end length of 44.625 in (1133.475 mm).
Signs a rack may need replacing include power steering fluid leaks, heavy or stiff steering, and excess steering play. If a failed rack is the cause, this unit replaces it. The same N311-0173 covers a 2004 Toyota Camry rack and pinion job as well as the other listed years. Transfer or replace the outer tie rods as directed by the service procedure, and check the wheel alignment after installation.
Country of origin: China.
Interchange: 44200-33320 · 44200-33321 · 44250-06130 · 44250-06131 · 44250-33320 · 44250-33321 · 45503-09230 · 45503-39225
4420033320 · 4420033321 · 4425006130 · 4425006131 · 4425033320 · 4425033321 · 4550309230 · 4550339225
This part cross-references / interchanges with the following part numbers:
44200-33320, 44200-33321, 44250-06130, 44250-06131, 44250-33320, 44250-33321, 45503-09230, 45503-39225
