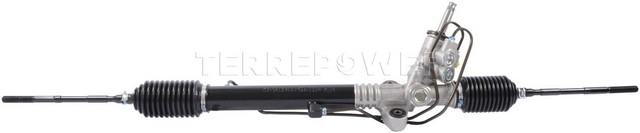

TERREPOWER N313-0317 rack and pinion for the 2005-2009 Subaru Outback and other vehicles turns steering wheel input into wheel movement. It is a new hydraulic unit intended for dependable service over the life of the vehicle.
- Hydraulic power steering rack
- Pressure port thread M14X1.50 and return port thread M16X1.50
- Two mounting holes spaced 85.852 mm (3.38 in) apart
- Total of 3.188 turns lock to lock
Quick facts
- Part: TERREPOWER N313-0317 rack and pinion
- Also called: rack and pinion assembly
- Fits: 2005-2009 Subaru Outback and other vehicles
- Condition: New
A worn rack can show up as fluid seepage at its ends, play or a notchy feel in the steering wheel, or noise when turning. Before you replace the rack, rule out worn outer tie rods and leaking lines or fittings, because other parts can produce these signs too.
Fits
This rack fits the 2005-2009 Subaru Outback, the 2008-2009 Subaru Impreza and the 2005-2009 Subaru Legacy. A vehicle takes one rack, and this listing is that one rack.
Specifications
Fit and size
- Quantity per vehicle: 1
- End to end length: 47.5 in (1206.5 mm)
- Input shaft length: 2.938 in (74.61 mm)
- Input shaft diameter: 0.688 in (17.46 mm)
- Mounting holes: 2, spaced 3.38 in (85.852 mm) apart
- Total turns lock to lock: 3.188
- Pressure port thread size: M14X1.50
- Return port thread size: M16X1.50
Build and materials
- Type: Hydraulic
- Condition: New
- Country of origin: China
In the box
One rack and pinion with inner tie rods and bushings. Outer tie rods are not included.
Interchange: 34110-AG05A · 34110-AG06A
Frequently Asked Questions
Is this steering rack right for the 2005-2009 Subaru Outback?
Yes. The TERREPOWER N313-0317 fits the 2005-2009 Subaru Outback, and that vehicle takes one rack.
Is this the right rack and pinion for the 2005-2009 Subaru Legacy?
Yes. The 2005-2009 Subaru Legacy takes one TERREPOWER N313-0317, and this listing is a single rack.
Are the tie rods included with this rack and pinion assembly?
Inner tie rods and bushings come with this rack. Outer tie rods are not included.
What thread sizes do the fluid ports on this rack use?
On the TERREPOWER N313-0317, the pressure port thread is M14X1.50 and the return port thread is M16X1.50.
How can I tell if this power steering rack is wearing out?
Watch for looseness or a notchy feel in the steering, or noise when turning. A shop can check the rack for leaks and test it, since other parts can cause these signs too.
