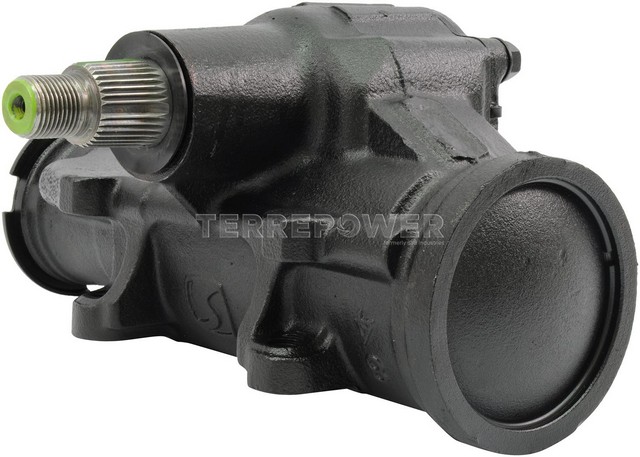

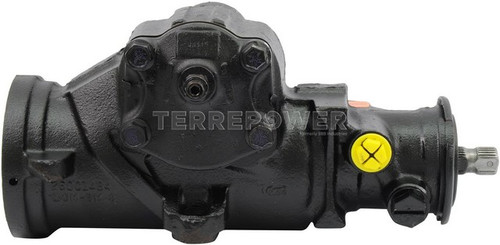

TERREPOWER 503-0144 steering gear for the 1996 Chevrolet C1500 and other vehicles turns steering wheel rotation into wheel movement with power assist. This is a remanufactured power steering gear.
- Power steering gear with 2.75 turns lock to lock
- Output shaft with 32 splines and a 31.75 mm (1.25 in) diameter
- Input shaft with 26 splines and an 18.29 mm (0.72 in) diameter
- Pressure port thread M18X1.50 and return port thread M16X1.50
- Three mounting holes
Quick facts
- Part: TERREPOWER 503-0144 steering gear
- Fits: 1996 Chevrolet C1500 and other vehicles
- Condition: Remanufactured
A worn steering gear can show up as loose or wandering steering, a groan or whine when turning, or fluid seeping at the gear. Before you replace the steering gear, rule out the pump, hoses, drive belt and tie rods, since worn parts there can produce similar symptoms.
Fits
This remanufactured steering gear is a direct-fit replacement for the 1996 Chevrolet C1500, the 1996 Chevrolet K1500 and the 1996 Chevrolet Tahoe, and each takes one. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Total turns lock to lock: 2.75
- Pressure port thread: M18X1.50
- Return port thread: M16X1.50
- Mounting holes: 3
- Output shaft diameter: 31.75 mm (1.25 in), 32 splines
- Input shaft diameter: 18.29 mm (0.72 in), 26 splines
Build and materials
- Type: Power
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured steering gear and an installation kit.
Interchange: 19321391 · 26042491 · 26042492 · 26052911 · 26052912
This part cross-references / interchanges with the following part numbers:
19321391, 26042491, 26042492, 26052911, 26052912
Frequently Asked Questions
Is the TERREPOWER 503-0144 steering gear right for a 1996 Chevrolet K1500?
Yes, TERREPOWER 503-0144 fits the 1996 Chevrolet K1500, along with the 1996 Chevrolet C1500 and the 1996 Chevrolet Tahoe; open the "Vehicles it fits" section for your exact model and engine.
Does the TERREPOWER 503-0144 steering gear come with an installation kit?
Yes. TERREPOWER 503-0144 comes as one remanufactured steering gear with an installation kit.
What thread sizes do the ports on this steering gear take?
The pressure port thread is M18X1.50 and the return port thread is M16X1.50.
Could a groaning noise when turning mean the steering gear is worn?
It can. Groaning, loose steering or fluid seeping at the gear are possible signs, and a shop can tell you whether the gear is the cause.
How many splines does the output shaft on this steering gear have?
The output shaft has 32 splines and a 31.75 mm (1.25 in) diameter. The input shaft has 26 splines and an 18.29 mm (0.72 in) diameter.
