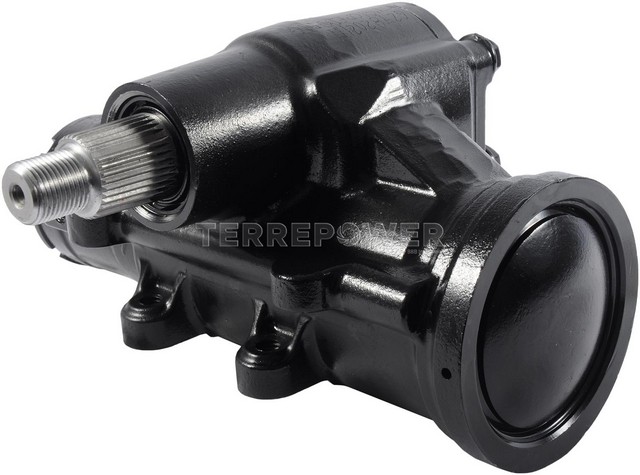

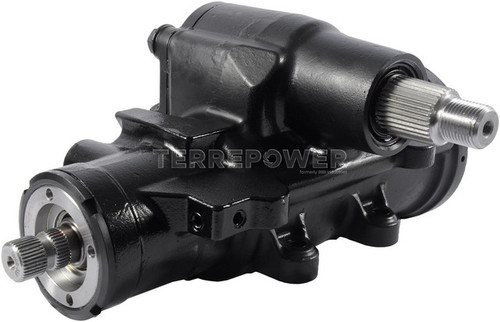

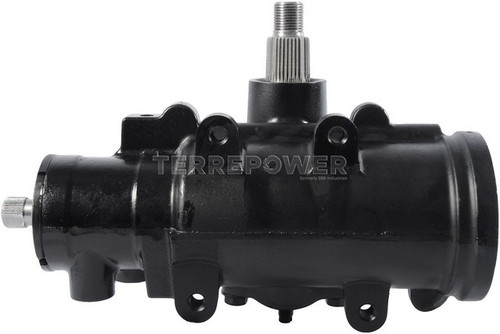

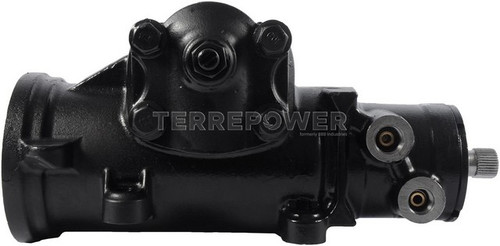

TERREPOWER N502-0104 steering gear for the 1974-1976 Chevrolet Impala and other vehicles converts steering wheel turns into front-wheel movement with power assist.
- New power steering gear designed for dependability and reliability throughout the vehicle's service life
- 4.25 total turns lock to lock
- Pressure port thread 11/16X18 and return port thread 5/8X18
- Installation kit included
Quick facts
- Part: TERREPOWER N502-0104 steering gear
- Fits: the 1974-1976 Chevrolet Impala and other vehicles
- Condition: New
Heavy steering, free play in the wheel or a wet gear housing can mean the steering gear is wearing out. With the engine off and cool, look over the hoses and port fittings for wetness first, because a leaking line or loose fitting can look like a gear leak and needs a different repair. Each vehicle has a single steering gear, so one covers the whole car.
Fits
The 1974-1976 Chevrolet Impala, 1970-1976 Buick Estate Wagon and 1974-1976 Chevrolet Caprice are among the vehicles this steering gear fits, along with many more. If your car is not named here, look up its year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 4
- Input shaft: 0.8 in (20.32 mm) diameter, 32 splines
- Output shaft: 1.25 in (31.75 mm) diameter, 32 splines
Build and materials
- Type: power
- Condition: New
- Country of origin: China
In the box
One power steering gear and an installation kit.
Interchange: 19321308
Frequently Asked Questions
Does the TERREPOWER N502-0104 steering gear fit a 1974-1976 Chevrolet Impala?
Yes. TERREPOWER N502-0104 is listed for the 1974-1976 Chevrolet Impala. For another car, find its year and model in the "Vehicles it fits" section.
Does this power steering gear come with an installation kit?
Yes. The listing is one new power steering gear with an installation kit.
What are the port thread sizes on the TERREPOWER N502-0104 steering gear?
On TERREPOWER N502-0104, the pressure port thread is 11/16X18 and the return port thread is 5/8X18.
What are the shaft sizes and spline counts on this steering gear?
The input shaft is 0.8 in (20.32 mm) with 32 splines. The output shaft is 1.25 in (31.75 mm) with 32 splines.
Does TERREPOWER N502-0104 replace number 19321308?
Yes. 19321308 is listed as an interchange number for TERREPOWER N502-0104.
