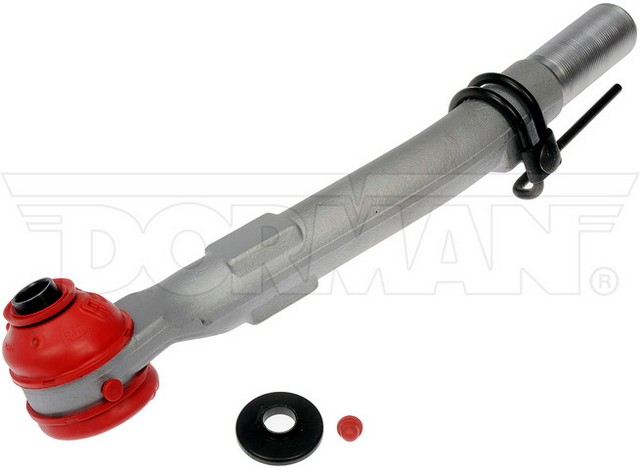

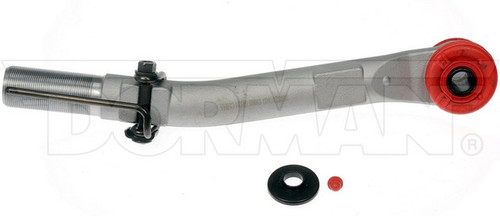

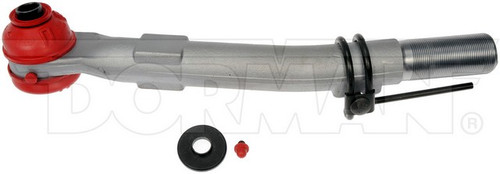

Dorman TO85032RD front right outer tie rod end for the 2005-2009 Ford F-250 and other vehicles passes steering input from the linkage to the front right wheel. It is one of the Dorman tie rod ends in the RD line, made to replace a failed original outer tie rod end.
- RD (rugged duty) line for severe-duty service
- Built for off-road work, heavy hauling, towing and other tough commercial use
- Quenched and tempered steel bearing housing with a protective coating
- Included hardware has a corrosion-resistant coating
Quick facts
- Part: Dorman TO85032RD tie rod end
- Also called: steering tie rod end
- Fits: 2005-2009 Ford F-250 and other vehicles
- Position: Front right outer
- Material: Steel (housing)
- Condition: New
Loose or wandering steering, play in the steering wheel or uneven tire wear can mean this steering tie rod end is worn, though a worn ball joint or wheel bearing can be behind the same signs. This listing is one tie rod end for the front right. The 2005-2009 Ford F-250 takes one on this side, the front left is ordered separately, and both sides are normally replaced together.
Fits
It is listed for a wide range of Ford trucks, led by the 2005-2025 Ford F-250 Super Duty and the 2005-2025 Ford F-350 Super Duty. If your truck is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front right outer (steering arm to steering arm)
- Quantity per vehicle: 1
- Length: 373.5 mm
- End 1: male
- End 2: female
Build and materials
- Housing material: steel
- Finish: coated
- Grease fitting: included
- Mounting hardware: included
- Condition: new
- Country of origin: Thailand
In the box
One tie rod end, one nut, one bolt and one support bracket, with a grease fitting.
Installation notes
- Where applicable, the joint is pre-loaded with grease to streamline installation.
- Grease boots have molded-in standoffs to help keep the lubrication where it belongs.
Interchange: 5C3Z3A131HA · 7C3Z3A131H · BC3Z3A131F · HC3Z3A131H · PC3Z3A131C · ES801721 · ES80755 · TXMS40622 · TXMS40672 · JTE1284 · JTE1796
This part cross-references / interchanges with the following part numbers:
5C3Z3A131HA, 7C3Z3A131H, BC3Z3A131F, HC3Z3A131H, PC3Z3A131C, ES801721, ES80755, TXMS40622, TXMS40672, JTE1284, JTE1796
Frequently Asked Questions
Is Dorman TO85032RD the right Ford F-250 tie rod end for the 2005-2009 model?
Yes. Dorman TO85032RD fits the 2005-2009 Ford F-250 as the front right outer tie rod end; the front left side is a separate part.
Does this work as a Ford F-350 Super Duty tie rod end for the 2005-2025 model?
Yes. Dorman TO85032RD is listed for the 2005-2025 Ford F-350 Super Duty as the front right outer tie rod end, and each side takes its own.
Is a separate Dorman tie rod boot included with this tie rod end?
No. The box lists one tie rod end, one nut, one bolt and one support bracket; the joint comes pre-loaded with grease in its own grease boot where applicable.
What is the housing of this RD tie rod end made of?
The bearing housing is steel, quenched and tempered, with an exclusive protective coating. The hardware that comes with it also has a corrosion-resistant coating.
How can I tell a front outer tie rod end is wearing out?
Loose steering, wandering or uneven tire wear can mean wear, and a torn grease boot or leaking grease is visible with the engine off. Have it checked or replaced promptly.
