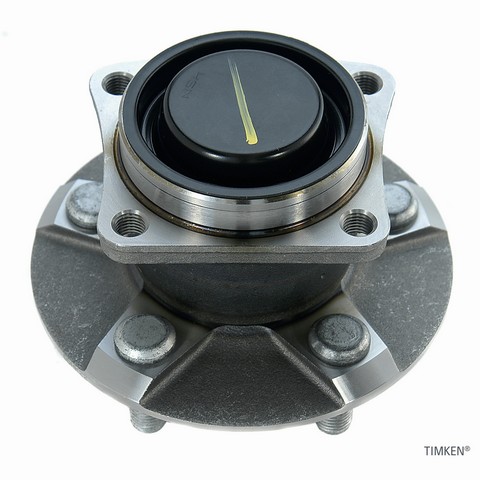

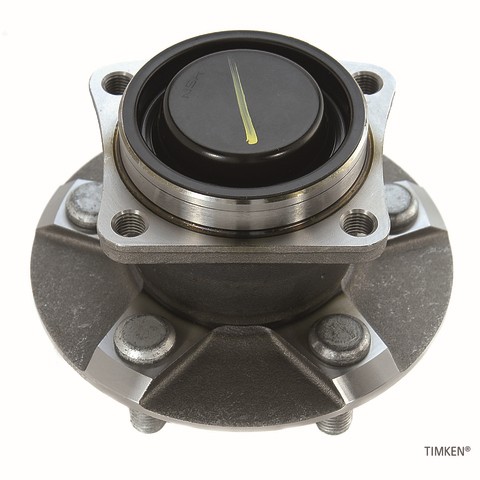

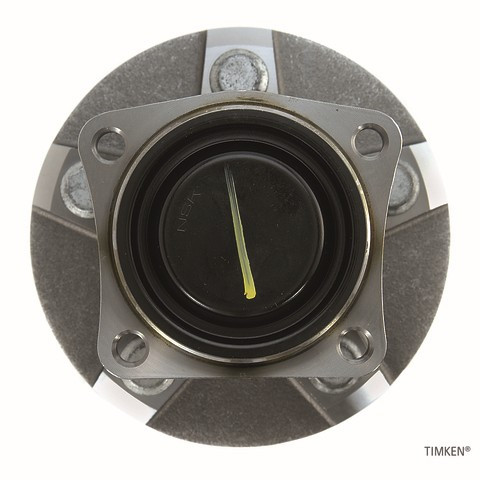

Timken 512218 rear wheel bearing and hub assembly for the 2003-2008 Toyota Corolla and other vehicles supports the rear wheel and lets it turn freely. This Timken wheel bearing comes preset, pre-greased and pre-sealed.
- Tests control the design, materials and manufacturing process of the hub bearing assembly
- Low runout reduces noise and vibration and improves braking performance
- Seals with a reinforced outer case, ribbed rubber inner diameter, contamination exclusion system and vent holes that prevent installation damage
- Bearings with precision profiles, uniform internal geometry and enhanced surface finishes for more load capacity and longer bearing life
- Timken ABS sensors are 100% tested to monitor wheel speed for the anti-lock braking system
Quick facts
- Part: Timken 512218 wheel bearing and hub assembly
- Fits: 2003-2008 Toyota Corolla and other vehicles
- Position: Rear
- Condition: New
A hum or growl from the rear that changes with speed, vibration, or an ABS warning light can mean this wheel bearing and hub assembly is worn, though a worn tire or a rear brake fault can be behind the same signs, so find the cause before replacing it.
Fits
It is listed for several Toyota models, including the 2003-2008 Toyota Corolla and the 2003-2008 Toyota Matrix, as well as the 2003-2008 Pontiac Vibe. If your car is not named here, look up its year, make and model in the "Vehicles it fits" section to see where else it is listed.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Bolt circle diameter: 100 mm (3.937 in), 4 flange bolt holes
- Flange diameter: 135 mm (5.315 in)
- Flange offset: 54.5 mm (2.146 in)
- Brake pilot diameter: 55 mm (2.165 in)
- Hub pilot diameter: 74 mm (2.913 in)
- Wheel pilot diameter: 54 mm (2.126 in)
Build and materials
- Drive type: Non-driven
- Construction: preset, pre-greased and pre-sealed hub unit
- Condition: New
In the box
This listing holds one wheel bearing and hub assembly. The vehicle takes two, one for each rear wheel, so order two and fit them together.
Interchange: 051-6159 · 405.44007
WE60734 · 512216 · BR930309 · BR930329
This part cross-references / interchanges with the following part numbers:
WE60734, 051-6159, 405.44007, 512216, 512218, BR930309, BR930329
Frequently Asked Questions
Is Timken 512218 the right 2003-2008 Toyota Corolla wheel bearing?
Yes, Timken 512218 is a rear wheel bearing and hub assembly for the 2003-2008 Toyota Corolla and also fits the 2003-2008 Toyota Matrix. For other cars, look yours up in the "Vehicles it fits" section.
What are the bolt circle and pilot sizes on the Timken 512218?
The bolt circle is 100 mm (3.937 in) with 4 flange bolt holes. The flange is 135 mm across, with a 55 mm brake pilot, a 74 mm hub pilot and a 54 mm wheel pilot.
Do Timken wheel hubs like this one come pre-greased?
Yes. This rear wheel bearing and hub assembly is preset, pre-greased and pre-sealed.
How are Timken hub bearings sealed against dirt?
The seal has a reinforced outer case, a ribbed rubber inner diameter and a contamination exclusion system. Vent holes in the seal prevent installation damage.
Can I cross-reference BR930309 to this wheel bearing and hub assembly?
Yes. BR930309 is one of the interchange numbers listed for Timken 512218; the full set is on the Interchange line of this page.
