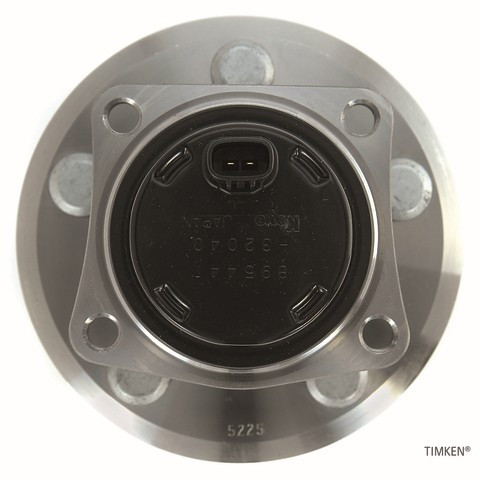

Timken HA590040 rear wheel bearing and hub assembly for the 2003-2008 Toyota Corolla and other vehicles mounts the rear wheel and lets it turn smoothly. This Timken wheel bearing is a non-driven hub unit, and OE-developed tests control its design, materials and manufacturing process.
- Preset, pre-greased and pre-sealed hub unit bearing assembly
- Low runout to reduce noise and vibration
- Seals have a reinforced outer case, ribbed rubber inner diameter, contamination exclusion system and vent holes to prevent installation damage
- Bearings have precision profiles, uniform internal geometry and enhanced surface finishes to raise load carrying capacity and extend bearing life
- ABS sensors are 100% tested to monitor wheel speed for anti-lock braking systems
Quick facts
- Part: Timken HA590040 wheel bearing and hub assembly
- Fits: 2003-2008 Toyota Corolla and other vehicles
- Position: Rear
A worn hub bearing can show up as a hum or growl from the rear that changes with speed, looseness at the wheel, or an ABS warning light. Before you replace the assembly, rule out tires, brake parts and other rear suspension parts that can make similar noises.
Fits
Listed for a wide range of Toyota, Scion and Pontiac models, this assembly fits the 2003-2008 Toyota Corolla, the 2004-2009 Toyota Prius and the 2005-2010 Scion tC, and the rear axle takes two. Plan on replacing the rear pair together, since this listing is one assembly. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Bolt circle diameter: 100 mm (3.937 in), 4 flange bolt holes
- Wheel studs: 5
- Flange diameter: 135 mm (5.315 in)
- Flange offset: 54.5 mm (2.166 in)
- Hub pilot diameter: 74 mm (2.913 in)
- Brake pilot diameter: 55 mm (2.165 in)
- Wheel pilot diameter: 54 mm (2.126 in)
Build and materials
- Drive type: Non-driven
- Construction: Preset, pre-greased and pre-sealed hub unit
Interchange: 051-6160 · 051-6264 · 407.44006 · 407.44011
WE60791 · 512217 · 512329 · BR930324
This part cross-references / interchanges with the following part numbers:
WE60791, 051-6160, 051-6264, 407.44006, 407.44011, 512217, 512329, BR930324
Frequently Asked Questions
Is this the rear Toyota Corolla wheel bearing for a 2003-2008 model?
Yes. Timken HA590040 is a rear wheel bearing and hub assembly listed for the 2003-2008 Toyota Corolla. Open the "Vehicles it fits" section to check your exact car.
Can I use it as a 2004-2009 Toyota Prius wheel bearing?
Yes. This rear hub assembly is listed for the 2004-2009 Toyota Prius, and the rear axle takes two.
Is this one of the Timken wheel hubs that comes pre-greased?
Yes. Timken HA590040 is a hub unit bearing assembly that is preset, pre-greased and pre-sealed.
What are the bolt circle and wheel stud count on this hub?
The bolt circle diameter is 100 mm (3.937 in) with 4 flange bolt holes and 5 wheel studs. The hub pilot diameter is 74 mm (2.913 in).
How is the seal on this rear hub unit built?
The seal has a reinforced outer case, a ribbed rubber inner diameter and a contamination exclusion system. Vent holes help prevent damage during installation.
