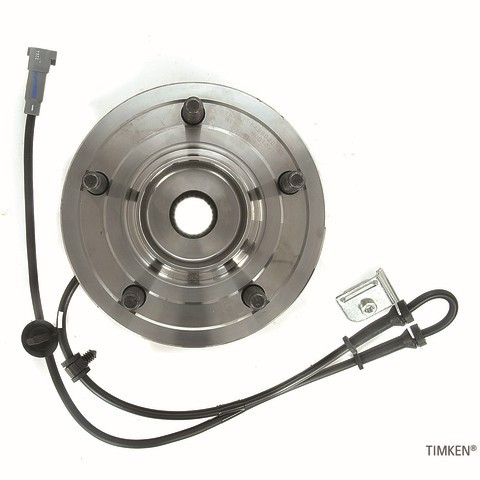

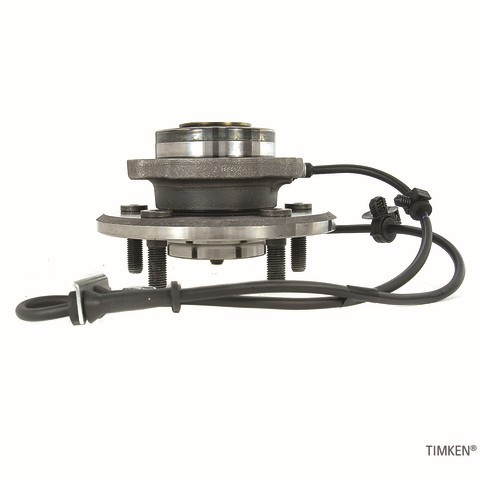

Timken HA590208 front wheel bearing and hub assembly for the 2004-2006 Chrysler Pacifica supports the wheel and lets it spin on the axle. The Timken wheel bearing comes preset, pre-greased and pre-sealed.
- Tests control the design, materials and manufacturing process
- Low runout reduces noise and vibration
- Seals have a reinforced outer case, ribbed rubber inner diameter, contamination exclusion system and vent holes that prevent installation damage
- Timken hub bearings have precision profiles, uniform internal geometry and enhanced surface finishes for higher load capacity and longer bearing life
Quick facts
- Part: Timken HA590208 wheel bearing and hub assembly
- Fits: 2004-2006 Chrysler Pacifica
- Position: Front
- Condition: New
A humming or growling noise that changes with speed, or a loose, wobbly feel at the wheel, can mean a worn wheel bearing. Before you replace this hub assembly, rule out tire wear, brake parts and worn suspension joints, which can make similar noise or vibration.
Fits
This is a direct-fit replacement for the 2004-2006 Chrysler Pacifica. This listing is one hub assembly for a front wheel; the other side of that axle is normally replaced at the same time.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Bolt circle: 127.00 mm (5.000 in), 5 wheel studs
- Flange bolt holes: 4
- Flange diameter: 167.45 mm (6.593 in)
- Flange offset: 48.60 mm (1.913 in)
- Brake pilot diameter: 81.90 mm (3.224 in)
- Hub pilot diameter: 85.00 mm (3.346 in)
- Wheel pilot diameter: 71.43 mm (2.812 in)
- Spline quantity: 26
Build and materials
- Drive type: Driven
- Construction: preset, pre-greased and pre-sealed hub unit
- ABS sensors: 100% tested to monitor wheel speed for anti-lock braking systems
- Condition: New
In the box
One wheel bearing and hub assembly. The 2004-2006 Chrysler Pacifica takes two, one for each front wheel.
Interchange: 402.63001
513201 · BR930355
This part cross-references / interchanges with the following part numbers:
402.63001, 513201, BR930355
Frequently Asked Questions
Are Timken front wheel bearings like the HA590208 right for the 2004-2006 Chrysler Pacifica?
Yes. Timken HA590208 is a front wheel bearing and hub assembly for the 2004-2006 Chrysler Pacifica, and the car takes two, one for each front wheel.
What is the bolt pattern and pilot size of the Timken HA590208?
Timken HA590208 has a 127.00 mm (5.000 in) bolt circle with 5 wheel studs, a 71.43 mm wheel pilot and an 81.90 mm brake pilot.
Does this Timken wheel bearing and hub assembly need greasing before it goes on?
No. This hub unit comes preset, pre-greased and pre-sealed.
What can humming or growling from the front wheel bearing mean on a Timken HA590208?
A hum or growl that changes with speed, or a loose feel at the wheel, can mean a worn bearing. A shop can confirm it, and a suspect bearing should be checked or replaced promptly.
Are Timken wheel hubs like this one driven, and how many splines does it have?
Timken HA590208 is a driven hub unit with 26 splines.
