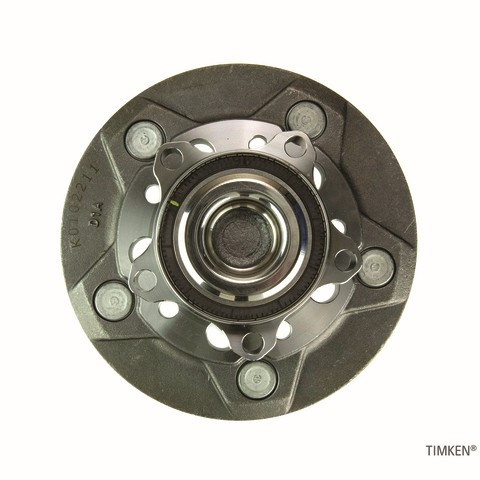

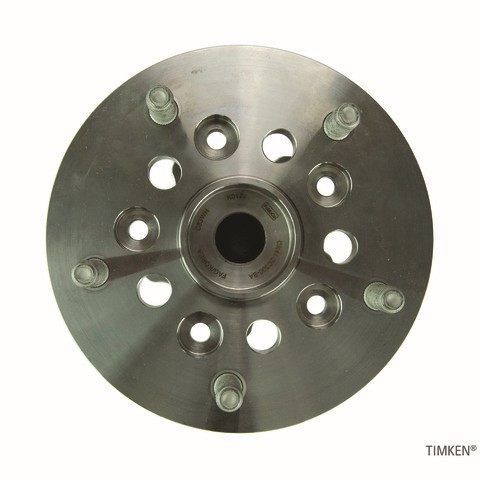

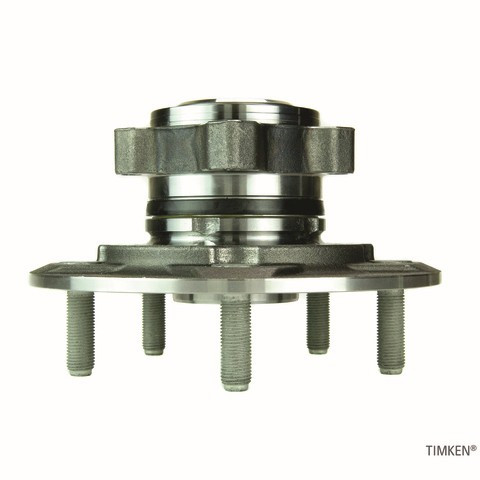

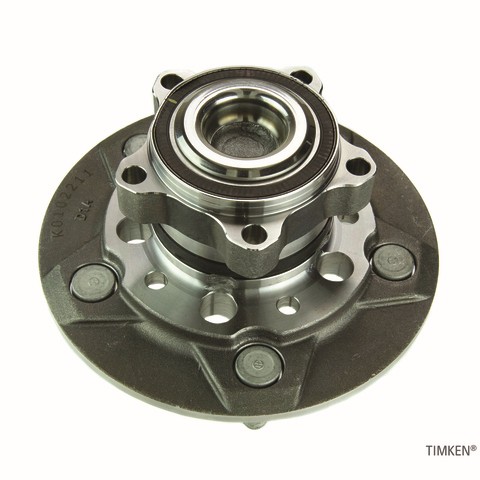

Timken HA590579 front wheel bearing and hub assembly for the 2015-2019 Ford Transit-150 and other vehicles carries the wheel and lets it turn on the hub. This Timken wheel bearing is built into a non-driven hub unit with a 5-bolt flange.
- Preset, pre-greased and pre-sealed hub unit bearing assembly
- Low runout to reduce noise and vibration and support braking performance
- Seals with a reinforced outer case, ribbed rubber inner diameter, contamination exclusion system and vent holes that prevent installation damage
- Bearings with precision profiles, uniform internal geometry and enhanced surface finishes for load carrying capacity
- ABS sensors are 100% tested to monitor wheel speed for the anti-lock braking system
Quick facts
- Part: Timken HA590579 wheel bearing and hub assembly
- Fits: 2015-2019 Ford Transit-150 and other vehicles
- Position: Front
- Condition: New
A hum that changes with road speed, vibration or an ABS warning light can mean the wheel bearing and hub assembly is wearing. Before you replace it, rule out the tires, brakes and other wheel-end parts that can cause similar noise or vibration. Front hub assemblies are normally replaced in pairs, and this listing holds one.
Fits
The 2015-2019 Ford Transit-150, the 2015-2019 Transit-250 and the 2015-2019 Transit-350 all take this wheel bearing and hub assembly as a direct-fit replacement, and it fits other vehicles too. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Bolt circle: 160 mm (6.299 in), 5 bolt holes
- Wheel stud quantity: 5
- Flange diameter: 208 mm (8.189 in)
- Flange offset: 78 mm (3.070 in)
- Hub pilot diameter: 87.5 mm (3.444 in)
- Brake pilot diameter: 64.91 mm (2.555 in)
- Wheel pilot diameter: 64.9 mm (2.555 in)
Build and materials
- Drive type: Non-driven
- Construction: hub unit bearing assembly, preset, pre-greased and pre-sealed
- Condition: New
In the box
One wheel bearing and hub assembly. These vehicles take two, so a pair needs two listings.
Interchange: 407.65012
WE62001 · 515153 · BR930936
This part cross-references / interchanges with the following part numbers:
WE62001, 407.65012, 515153, BR930936
Frequently Asked Questions
Do Timken front wheel bearings like the HA590579 fit the 2015-2019 Ford Transit-250?
Yes. Timken HA590579 is a front assembly for the 2015-2019 Ford Transit-250, whatever the engine. For any other model, open the "Vehicles it fits" section and look up your van.
Does the Timken wheel bearing and hub assembly come already greased?
Yes. This hub unit is preset, pre-greased and pre-sealed, so the bearing is ready to install as supplied.
What is the bolt circle on these Timken wheel hubs?
Timken HA590579 has a 160 mm (6.299 in) bolt circle with 5 wheel studs. Its hub pilot diameter is 87.5 mm (3.444 in) and its flange diameter is 208 mm (8.189 in).
What are signs that Timken hub bearings are wearing out?
Humming or growling that changes with speed, vibration, or an ABS warning light can mean a worn bearing. A shop can test the bearing to confirm.
Are the ABS sensors on Timken front wheel bearings like this one tested?
Yes. The ABS sensors are 100% tested to monitor wheel speed for the anti-lock braking system.
