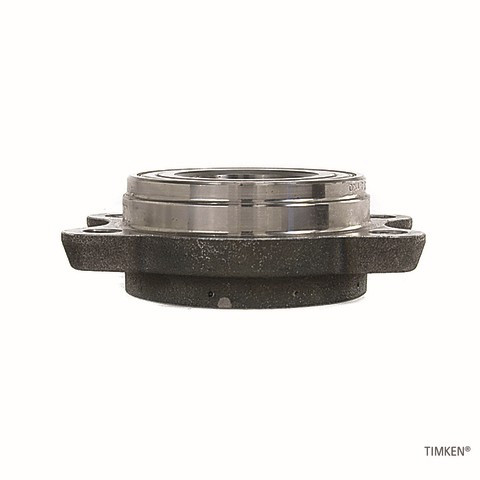

Timken 512305 wheel bearing for the 2002-2004 Volkswagen Passat and other vehicles lets the wheel turn freely on its hub. This Timken wheel bearing, also called a wheel bearing assembly, comes as a single module with four mounting holes.
- Design, materials and manufacturing process are tested
- Preset bearing module with the bearing included
- Self-contained design is maintenance free
- Ball bearing type in steel for non-driven applications
Quick facts
- Part: Timken 512305 wheel bearing
- Also called: wheel bearing assembly
- Fits: 2002-2004 Volkswagen Passat and other vehicles
- Position: Front, rear
- Material: Steel
- Condition: New
A hum or growl that changes with speed, or looseness at the wheel, can mean a worn bearing. Tires and brake parts can make similar noise, so have a shop confirm the cause before you replace it.
Fits
It is listed for a wide range of Audi and Volkswagen models, led by the 2002-2004 Volkswagen Passat, the 2004-2009 Audi S4 and the 2002-2009 Audi A4. The Passat takes two, one on each side of the axle. This listing is one bearing, and the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: Front, rear
- Quantity per vehicle: 2
- Outside diameter: 85.00 mm (3.346 in)
- Inside diameter: 45.00 mm (1.771 in)
- Hub pilot diameter: 85.00 mm (3.346 in)
- Width: 40.25 mm (1.585 in)
- Mounting holes: 4
Build and materials
- Bearing type: Ball
- Material: Steel
- Drive type: Non-driven
- Pre-greased: Yes
- ABS sensor: not included
- Condition: New
In the box
One wheel bearing. Not included: hub, wheel studs, axle nut, seal, ABS sensor and wiring harness.
Installation notes
- Pre-greased and pre-sealed for ease of installation.
Interchange: 051-4259
WE60673 · FW179 · WKH3536
This part cross-references / interchanges with the following part numbers:
WE60673, 051-4259, 512305, FW179, WKH3536
Frequently Asked Questions
Is Timken 512305 an Audi A4 wheel bearing for the 2002-2009 model years?
Yes. Timken 512305 is listed for the 2002-2009 Audi A4. If your car is not named on this page, look it up in the "Vehicles it fits" section.
Is this Timken front wheel bearing and hub assembly sold with the hub?
No. Timken 512305 is a bearing module and does not include the hub, wheel studs, axle nut, seal, ABS sensor or wiring harness.
What are the dimensions of Timken hub bearings like the 512305?
This bearing measures 85.00 mm (3.346 in) outside diameter, 45.00 mm (1.771 in) inside diameter and 40.25 mm (1.585 in) wide. The hub pilot diameter is 85.00 mm.
Do Timken front wheel bearings need extra grease at install?
No. Timken 512305 is pre-greased and pre-sealed, and its self-contained design is maintenance free.
Is Timken 512305 interchangeable with 051-4259?
Yes. Timken 512305 replaces 051-4259, which is listed as a cross-reference number for this wheel bearing.
