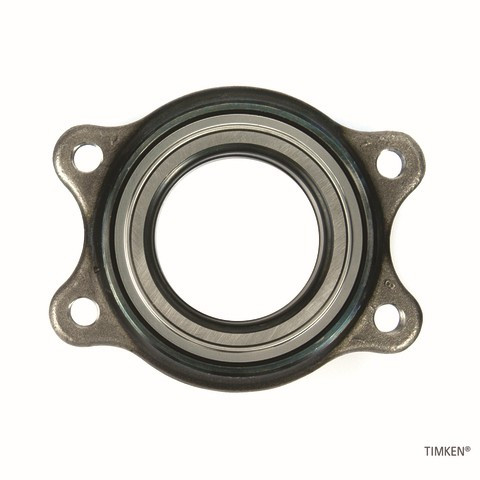

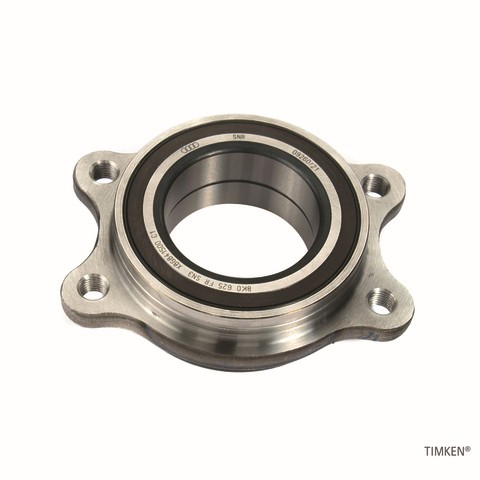

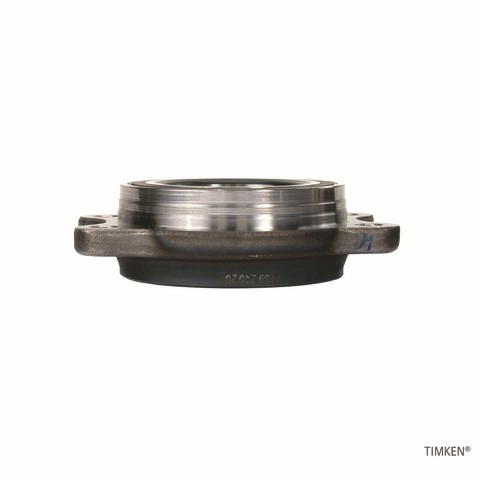

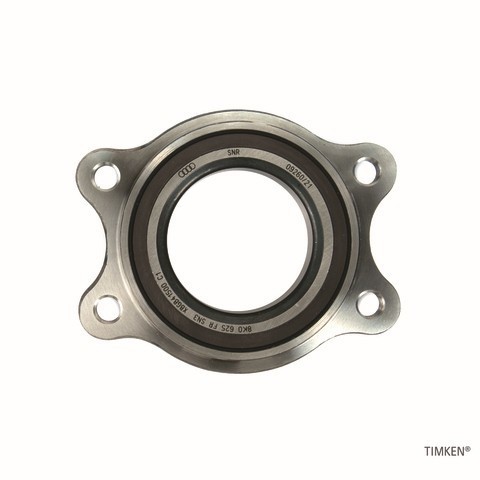

Timken 513301 wheel bearing for the 2009-2015 Audi A4 and other vehicles carries the wheel and lets it turn freely on the hub. Also called a wheel bearing assembly, it is a non-driven bearing module.
- Pre-set, pre-greased and pre-sealed bearing module for easier installation
- Self-contained design that needs no maintenance
- Design, materials and manufacturing process are all tested
- Four flange bolt holes with M12x1.5 flange bolt thread
Quick facts
- Part: Timken 513301 wheel bearing
- Also called: wheel bearing assembly
- Fits: 2009-2015 Audi A4 and other vehicles
- Position: Front, rear
- Condition: New
A hum or growl that rises with speed, vibration at the wheel or an ABS warning light can mean a bearing is wearing out. Tires can make a similar hum, so look them over for uneven wear first to find the cause before you replace the bearing.
Fits
The 2009-2015 Audi A4, the 2012-2018 Audi A6 Quattro and the 2012-2018 Audi A7 Quattro all take this wheel bearing, as do other vehicles, and the quantity per vehicle varies (the 2012-2018 Audi A6 Quattro takes two). This listing is one bearing, and the other side of the same axle is normally done at the same time.
Specifications
Fit and size
- Position: front, rear
- Quantity per vehicle: varies by vehicle
- Sold individually, one per listing
- Width: 40.50 mm (1.594 in)
- Hub pilot diameter: 102.00 mm (4.016 in)
- Inside diameter: 61.00 mm (2.401 in)
- Flange bolt holes: 4
- Flange bolt size: M12, thread M12x1.5
Build and materials
- Type: bearing module
- Drive type: non-driven
- Pre-greased: yes
- Flange shape: rectangle
- ABS sensor ring: not included
- Condition: new
In the box
One wheel bearing. The hub, ABS sensor ring, wheel studs, axle nut and seal are not included. The old studs and axle nut may not be reusable, so plan on new ones where the car needs them.
Interchange: WE60683 · 512574 · BR930817
This part cross-references / interchanges with the following part numbers:
WE60683, 512574, 513301, BR930817
Frequently Asked Questions
Is Timken 513301 an Audi A4 wheel bearing for the 2009-2015 Audi A4?
Yes. Timken 513301 fits the 2009-2015 Audi A4, 2012-2018 Audi A6 Quattro and 2012-2018 Audi A7 Quattro, along with other vehicles; check your own car in the "Vehicles it fits" section.
Is Timken 513301 one of the Timken front wheel bearings, or does it fit the rear too?
It is listed for both the front and rear positions. This Timken 513301 is sold as a single bearing.
Does this Timken front wheel bearing and hub assembly come with the hub?
No. Timken 513301 is a bearing module without the hub, ABS sensor ring, wheel studs, axle nut or seal.
Are Timken hub bearings such as the 513301 pre-greased?
Yes. This bearing module is pre-greased, pre-set and pre-sealed, and its self-contained design is maintenance free.
What size is the hub pilot on the 513301?
The hub pilot diameter is 102.00 mm (4.016 in), and the inside diameter is 61.00 mm (2.401 in).
