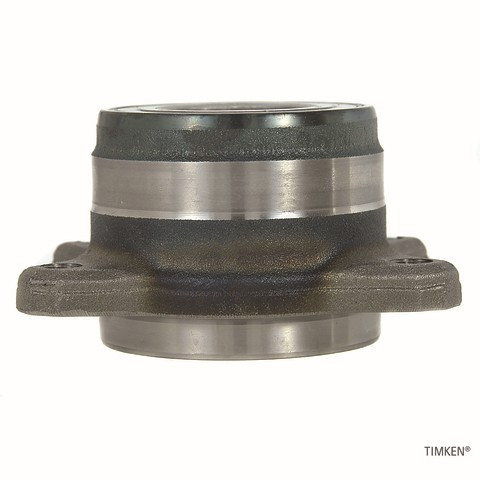

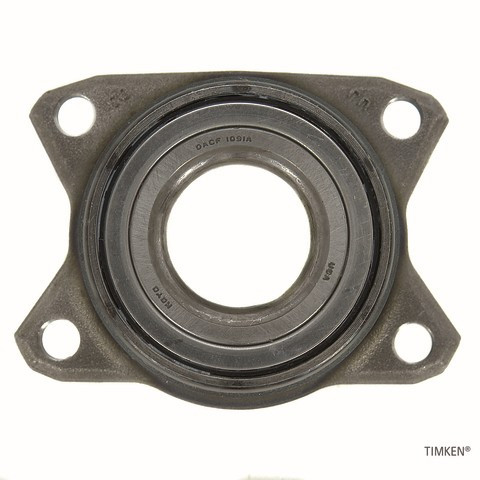

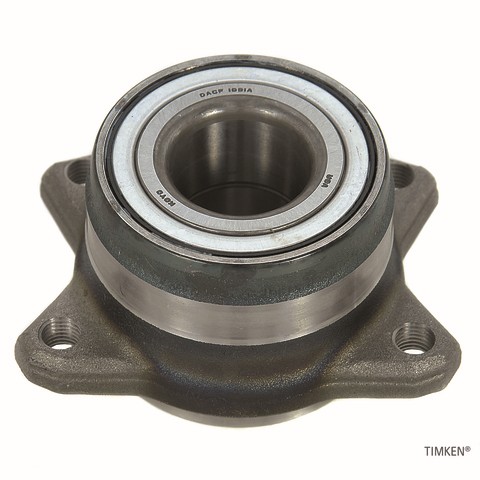

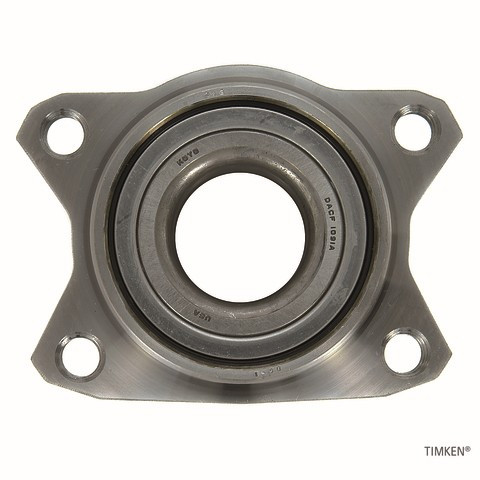

Timken 512136 rear wheel bearing and hub assembly for the 1996-2005 Chrysler Sebring and other vehicles lets the rear wheel turn on the axle. This Timken wheel bearing is a non-driven ball bearing module that supports the wheel.
- Timken tests the design, materials and manufacturing process of its bearing assemblies
- Self-contained, maintenance-free design
- Gen 2 ball bearing module with a modified flange and four mounting holes
- Steel construction with an M10x1.25 flange bolt thread
Quick facts
- Part: Timken 512136 wheel bearing and hub assembly
- Fits: 1996-2005 Chrysler Sebring and other vehicles
- Position: Rear
- Material: Steel
- Condition: New
A hum or growl from the rear that changes with speed, or looseness at the wheel, can mean a worn bearing. Before you replace the assembly, rule out tire wear, brake drag or a loose wheel, which can make similar noises. The car takes two, one on each side of the rear axle. This listing is one assembly, and both sides are normally replaced together.
Fits
The 1996-2005 Chrysler Sebring, the 1995-2005 Mitsubishi Eclipse and the 1996-2003 Mitsubishi Galant all fit this assembly, and so do more vehicles. Look for your own car in the "Vehicles it fits" section of this page.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Outside diameter: 66 mm
- Inside diameter: 30 mm (1.1811 in)
- Hub pilot diameter: 68 mm (2.677 in)
- Bolt circle: 90 mm (3.5433 in), 4 bolt holes
- Flange bolt thread: M10x1.25
Build and materials
- Type: Gen 2 ball bearing, non-driven
- Material: Steel
- Flange shape: Modified
- Pre-greased: Yes
- ABS sensor ring: not included
- Condition: New
In the box
One wheel bearing and hub assembly, supplied as a bearing module. Not included: ABS sensor ring, ABS sensor, wheel studs, axle nut, gasket or seal, and wiring harness. Plan on a new axle nut rather than reusing the old one.
Installation notes
- Preset, pre-greased and pre-sealed for ease of installation.
Interchange: 051-4117 · 406.46000
BR930172
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
051-4117, 406.46000, 512136, BR930172
Frequently Asked Questions
Is this Timken wheel bearing and hub assembly right for the 1996-2005 Chrysler Sebring?
Yes. Timken 512136 fits the 1996-2005 Chrysler Sebring and other vehicles; look up your own car in the "Vehicles it fits" section.
Are these Timken wheel hubs for the front or the rear axle?
Rear. Timken 512136 is a non-driven Gen 2 ball bearing assembly with a four-hole flange on a 90 mm bolt circle.
Does this Timken wheel bearing assembly include the ABS sensor ring or wheel studs?
No. This listing is one bearing module; the ABS sensor ring, ABS sensor, wheel studs, axle nut, seal and wiring harness are not included.
How can I tell if my Timken hub bearings are wearing out?
Noise that rises and falls with road speed, or a wheel that feels loose, can be signs of a worn bearing. A shop can inspect it and confirm.
Does the Timken 512136 bearing need greasing or setting before it goes on?
No. It comes preset, pre-greased and pre-sealed, and its self-contained design is maintenance free.
