Raybestos Brakes Disc Brake Rotor P/N:980781R

Be the first to review this product
$79.99
MPN: 980781R
UPC: 829352795392
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Raybestos Brakes Disc Brake Rotor P/N:980781R
Raybestos Brakes Disc Brake Rotor P/N:980781R
$79.99

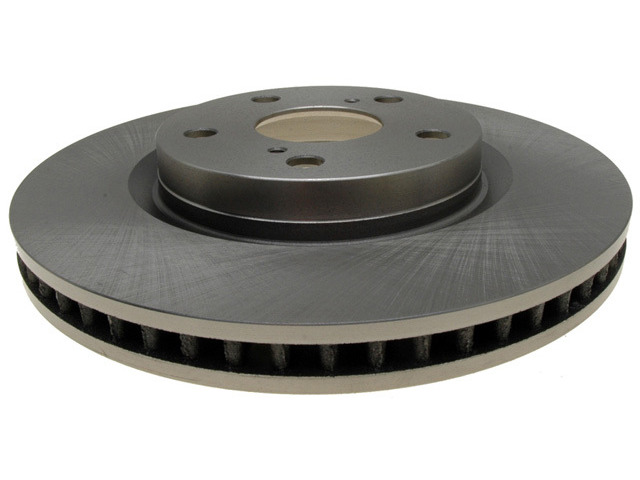

Bring smooth, confident stops back to your Toyota RAV4 with the Raybestos R-Line Disc Brake Rotor 980781R. This vented front disc brake rotor is a direct-fit replacement for the 2009-2018 Toyota RAV4 (engine: All), engineered for everyday driving conditions.

  • OE Fit, Form, and Function: developed from OE samples and made with G3000-qualified cast iron material for dependable braking.
  • SAE Standard: meets the SAE standard for tensile strength, providing structural integrity and a maximum service life.
  • Low Lateral Runout & Thickness Variation: tight runout and thickness-variation parameters help reduce pedal pulsation and brake noise while supporting extended pad life.
  • Mill Balanced Edges: mill balanced and 100 percent validated to minimize thickness variation, reduce vibration, and deliver smoother stopping.

Specifications: non-directional, smooth-surface, conventional vented rotor; 11.655 in (296.05 mm) outside diameter; 5 stud/lug holes; 62 mm center hole; 1.102 in (28 mm) nominal thickness; 0.984 in (25 mm) discard thickness. Country of origin: China. Sold individually; this application uses two, so order 2 and replace both sides together as a matched pair for even, balanced braking.

Interchange: AX900360 · AX900360P · 50011503 · 980781 · 980781FZN · 980781RGS · BR31551 · 31551 · TN980781GEO · 435120R020 · 6621038. Manufacturer part number 980781R.

This part cross-references / interchanges with the following part numbers:

AX900360, AX900360P, 50011503, 980781, 980781FZN, 980781R, 980781RGS, BR31551, 31551, TN980781GEO, 435120R020, 6621038

Frequently Asked Questions

Will this rotor fit my vehicle?

It is a direct-fit front disc brake rotor for the 2009-2018 Toyota RAV4 (engine: All). Check the Buyer's Guide tab to confirm the fit for your exact vehicle.

Is this a vented or solid rotor?

It is a conventional vented rotor with a non-directional, smooth braking surface.

How many rotors do I need?

This application uses two rotors. They are sold individually, so order 2 and replace both sides together as a matched pair for even, balanced braking.

What is this rotor made of?

It is made with G3000-qualified cast iron, developed from OE samples for OE fit, form, and function, and meets the SAE standard for tensile strength.

What are signs my rotor may need replacing?

Pedal pulsation, vibration when braking, or brake noise can be signs a rotor may need replacing. Diagnose the cause before ordering, as these symptoms can have other sources.
