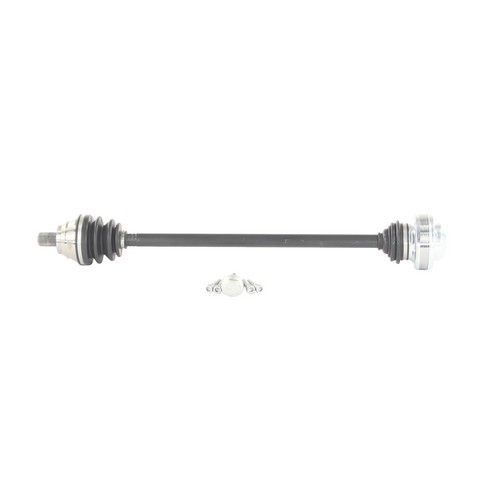

TrakMotive AD-8127 front right CV axle shaft for the 2005-2010 Volkswagen Jetta and other vehicles sends drive torque to the front right wheel and flexes with suspension travel.
- Neoprene boots on both the inboard and outboard joints
- Bolt-on inboard joint with six bolt holes
- Outboard joint with 36 splines and a spline bolt connection
- Overall compressed length of 795 mm (31.3 in)
Quick facts
- Part: TrakMotive AD-8127 CV axle shaft
- Fits: 2005-2010 Volkswagen Jetta and other vehicles
- Position: Front right
- Condition: New
A clicking noise on tight turns, grease thrown from a torn boot or vibration under acceleration can mean an axle is worn. Before you replace it, rule out a tire, wheel bearing or engine mount problem that can feel the same. Both front axles are normally replaced together, and this listing is one axle for the front right; the front left is ordered separately.
Fits
The vehicles it fits include the 2005-2010 Volkswagen Jetta, the 2011-2014 Volkswagen Golf and the 2010 Volkswagen Passat. If your car is not named here, look it up in the "Vehicles it fits" section before you order.
Specifications
Fit and size
- Position: front right
- Quantity per vehicle for this position: 1
- Overall compressed length: 795 mm (31.3 in)
- Axle bolt: M16x1.5 thread, 97 mm long, 27 mm hex
- Inboard bolt: M10x1.5 thread, 55 mm (2.17 in) long, 8 mm Allen head
- Inboard joint bolt holes: 6
- Outboard splines: 36
Build and materials
- Inboard joint: bolt-on
- Outboard joint: Audi style spline bolt
- Boot material: neoprene on both joints
- ABS tone ring: not included
- Condition: new
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
This listing holds one CV axle shaft, and the front right position takes one. The axle nut is not included, so plan on a new nut.
Frequently Asked Questions
Is this the right CV axle shaft for a 2005-2010 Volkswagen Jetta?
Yes. TrakMotive AD-8127 fits the 2005-2010 Volkswagen Jetta in the front right position. If your car is not named, look it up in the "Vehicles it fits" section.
Does the TrakMotive AD-8127 axle come with the axle nut?
No. The TrakMotive AD-8127 does not include the axle nut, so plan on a new one. This listing is one front right CV axle shaft.
Does this CV axle include an ABS tone ring?
No. This axle does not include an ABS tone ring. ABS axles fit non-ABS applications unless otherwise noted.
What size is the axle bolt on this TrakMotive CV axle?
The axle bolt has an M16x1.5 thread, is 97 mm long and has a 27 mm hex. The axle's overall compressed length is 795 mm (31.3 in).
Can a clicking noise on tight turns mean the front right CV axle is worn?
Yes. Clicking on tight turns, grease around a torn boot or vibration under acceleration can mean the axle is worn. A shop can confirm the cause.
