Rear CV Axle Shaft for 2000-2002 Audi S4 - TrakMotive AD-8145

$158.99

TrakMotive CV Axle Shaft AD-8145 - view 2

TrakMotive CV Axle Shaft AD-8145 - view 3

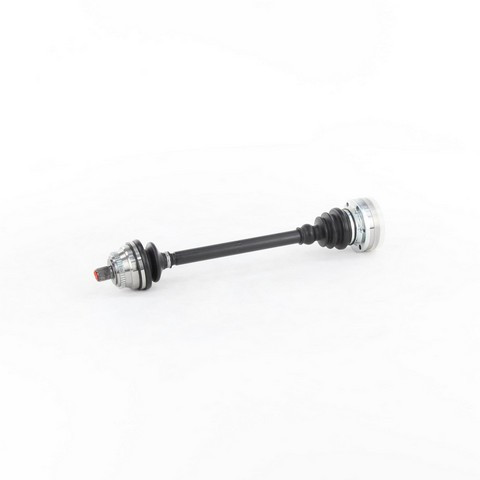

TrakMotive CV Axle Shaft AD-8145 - view 4

Part number: AD-8145

UPC: 844084004451

Condition: New

Weight: 15.60 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$158.99

Current Stock: 11

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

TrakMotive CV Axle Shaft P/N:AD-8145

$158.99

Description

TrakMotive AD-8145 rear CV axle shaft for the 2000-2002 Audi S4 carries engine torque from the differential to the wheel. This TrakMotive CV axle has joints that let the shaft keep driving the wheel as the suspension moves.

Toothed ABS ring with 45 teeth
Neoprene boots on the inboard and outboard joints
Bolt-on inboard joint
Outboard joint with a spline bolt connection and 38 splines
Overall compressed length of 592 mm (23.31 in)

Quick facts

Part: TrakMotive AD-8145 CV axle shaft
Fits: 2000-2002 Audi S4
Position: Rear
Condition: New

A clicking noise in turns, vibration under acceleration or grease thrown from a torn boot can mean the joint is wearing. These signs alone do not prove the axle is the problem, since a worn wheel bearing is another common source of noise.

Fits

This rear CV axle shaft fits the 2000-2002 Audi S4. This listing is one rear shaft, and the other side of that axle is normally replaced at the same time.

Specifications

Fit and size

Position: Rear
Quantity per vehicle: 2
Overall compressed length: 592 mm (23.31 in)
Outboard splines: 38
Inboard shaft connection: Bolt-On
Outboard shaft connection: Audi Style Spline Bolt

Build and materials

ABS tone ring: included, toothed, 45 teeth
Boot material: neoprene (inboard and outboard)
Condition: New
Country of origin: China
Warranty: TrakMotive limited lifetime warranty

In the box

One CV axle shaft with its toothed ABS ring; the axle nut is not included. This listing holds one shaft, and the 2000-2002 Audi S4 takes two.

Interchange: 8D0 501 203
109145 · NCV23053 · 77805 · 8D0501203X

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

109145, NCV23053, 77805, 8D0501203, 8D0 501 203, 8D0501203X, AD-8145

Buyer's Q&A

Frequently Asked Questions

Is the TrakMotive AD-8145 rear CV axle shaft right for the 2000-2002 Audi S4?

Yes. TrakMotive AD-8145 is a rear CV axle shaft that fits the 2000-2002 Audi S4, and the car takes two.

Does the TrakMotive CV axle shaft come with the axle nut?

No. This listing is one shaft with its toothed ABS ring; the axle nut is not included.

How many teeth does the ABS ring on this CV axle have?

TrakMotive AD-8145 has a toothed ABS ring with 45 teeth, and the ring is included with the shaft.

Can a torn neoprene boot mean the axle needs replacing?

A split boot, grease spatter near the joint or clicking in turns can mean the joint is wearing. Look at the boot with the car parked, and have a shop inspect any damage.

How long is the TrakMotive AD-8145 CV axle shaft?

Its overall compressed length is 592 mm (23.31 in), and the outboard end has 38 splines.
