Front CV Axle Shaft for 2017-2020 Audi A4 - TrakMotive AD-8169

$214.99

TrakMotive CV Axle Shaft AD-8169 - view 2

TrakMotive CV Axle Shaft AD-8169 - view 3

Part number: AD-8169

UPC: 844084026811

Condition: New

Weight: 16.00 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$214.99

Current Stock: 53

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

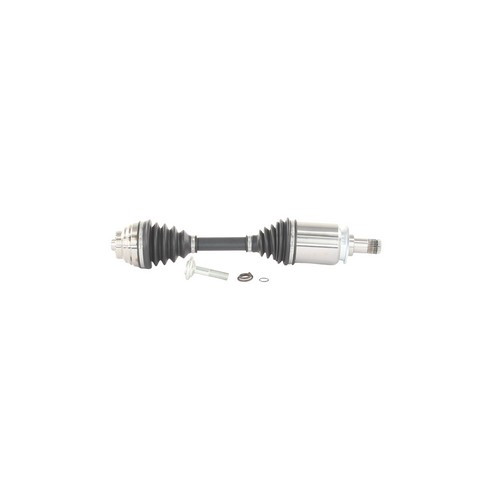

TrakMotive CV Axle Shaft P/N:AD-8169

$214.99

Description

TrakMotive AD-8169 front CV axle shaft for the 2017-2020 Audi A4 carries drive torque from the transmission to the front wheel. The TrakMotive CV axle keeps turning the wheel as the suspension moves and the wheel steers.

Flange inboard joint with 6 bolt holes
Spline bolt outboard joint with 42 outboard splines
Neoprene boots on the inboard and outboard joints
Axle bolt with M16x1.5 thread, 19 mm hex size and 86 mm length

Quick facts

Part: TrakMotive AD-8169 CV axle shaft
Fits: 2017-2020 Audi A4
Position: Front
Condition: New

A clicking noise when turning, vibration under acceleration or a torn boot with grease thrown around can be signs of a worn axle. A worn wheel bearing, a worn suspension joint or an out-of-balance tire can produce similar noise or vibration, so find the cause before buying.

Fits

This axle shaft fits the front of the 2017-2020 Audi A4. This listing is one shaft; the other side of that front axle is normally done at the same time. ABS axles fit non-ABS applications unless otherwise noted.

Specifications

Fit and size

Position: front
Quantity per vehicle: 2
Overall compressed length: 457 mm (17.99 in)
Inboard bolts: 6, M10x1.5 thread, Allen head, 9 mm head size, 30 mm long

Build and materials

Outboard joint type: Audi-style spline bolt
ABS tone ring: not included
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft. This listing holds one shaft and the front axle of the 2017-2020 Audi A4 takes two. The axle nut is not included.

Interchange: 8W0407271B · 8W0407271F

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

8W0407271B, 8W0407271F, AD-8169

Buyer's Q&A

Frequently Asked Questions

Is the TrakMotive AD-8169 front CV axle shaft right for a 2017-2020 Audi A4?

Yes. TrakMotive AD-8169 is a front CV axle shaft listed for the 2017-2020 Audi A4, and the front axle takes two.

What joint types does this TrakMotive CV axle shaft have?

TrakMotive AD-8169 has a flange inboard joint with 6 bolt holes and a spline bolt outboard joint with 42 splines. Both joints have neoprene boots.

Is the axle nut included with this front CV axle shaft?

No. The axle nut is not included, and neither is an ABS tone ring. This listing is one front CV axle shaft.

How can I check the boots on a front CV axle shaft?

With the engine off, look at the neoprene boots on both joints for tears, splits or grease thrown around. A clicking noise when turning is something a driver may notice in normal driving.

Does TrakMotive AD-8169 cross-reference to 8W0407271B?

Yes. 8W0407271B is one of the interchange numbers for TrakMotive AD-8169, along with 8W0407271F.
