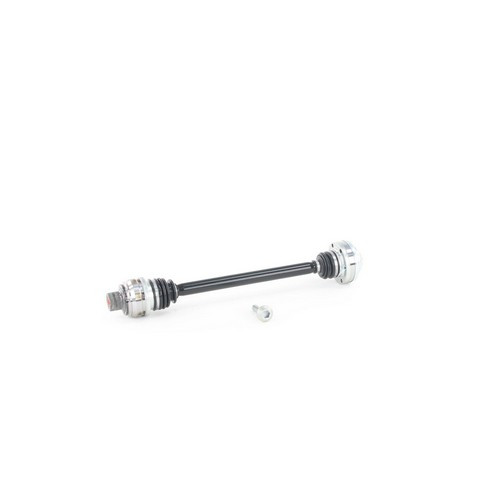

TrakMotive AD-8189 rear CV axle shaft for the 2012-2018 Audi A6 Quattro and other vehicles carries drive torque to the rear wheel. It keeps power flowing to the wheel while the suspension moves up and down.
- Neoprene boots on both the inboard and outboard joints
- Bolt-on inboard joint with 6 bolt holes
- Spline bolt outboard joint with 42 splines
- Axle bolt with M16x1.5 thread, 17 mm hex and 85 mm length
Quick facts
- Part: TrakMotive AD-8189 CV axle shaft
- Fits: 2012-2018 Audi A6 Quattro and other vehicles
- Position: Rear
- Material: Neoprene joint boots
- Condition: New
A clicking noise on turns, vibration under acceleration or grease around a torn boot can mean an axle is wearing out. These signs alone do not prove the axle is the problem, because a worn wheel bearing can make a similar noise. Rear axles are normally replaced as a pair, and this listing is one shaft.
Fits
It is listed for a wide range of Audi models, led by the 2012-2018 Audi A6 Quattro, the 2012-2018 Audi A7 Quattro and the 2011-2018 Audi A8 Quattro, and each takes two. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Overall compressed length: 660 mm (25.98 in)
- Overall extended length: 738 mm (29.06 in)
Build and materials
- Boot material: neoprene, inboard and outboard
- ABS tone ring: not included
- Condition: New
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft. The axle nut is not included, so plan on a new nut, since the old one may not be reusable.
Interchange: 8R0501203C
Frequently Asked Questions
Does the TrakMotive AD-8189 fit the 2012-2018 Audi A6 Quattro?
Yes, TrakMotive AD-8189 is a rear CV axle shaft listed for the 2012-2018 Audi A6 Quattro, and each car takes two. Open the "Vehicles it fits" section to check other models and engines.
Does this TrakMotive CV axle come with the axle nut?
No. The axle nut is not included with this rear axle shaft, so plan on buying a new one. The listing is a single shaft.
What axle bolt size does the TrakMotive AD-8189 use?
The TrakMotive AD-8189 axle bolt has an M16x1.5 thread, a 17 mm hex and an 85 mm length.
What are the signs of a worn rear CV axle shaft?
A clicking noise on turns, vibration when accelerating or grease around a torn boot can mean wear. A shop can inspect the axle to confirm.
Is 8R0501203C the same axle as TrakMotive AD-8189?
Yes, 8R0501203C is listed as an interchange number for TrakMotive AD-8189, so this rear CV axle shaft replaces it.
