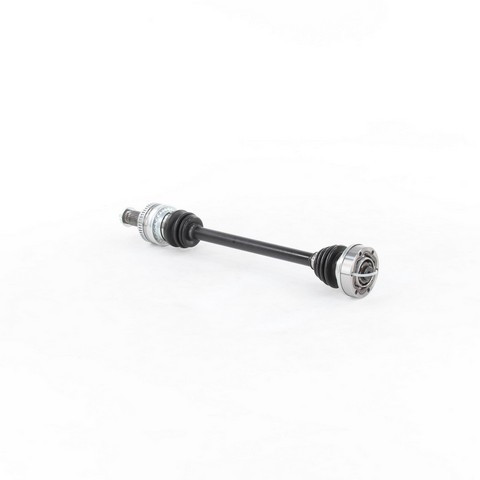

TrakMotive BM-8109 rear left CV axle shaft for the 2004-2006 BMW X3 carries drive torque to the wheel while flexing with suspension travel. A TrakMotive CV axle like this one replaces the rear left shaft when its joints or boots wear out.
A clicking noise when turning, vibration under load or grease thrown from a torn boot can mean the joints are wearing. Before you replace the axle, rule out a wheel bearing, tire or brake problem that can cause similar noise or vibration. Change the left and right axles together when you can; this listing is one rear left shaft, and the rear right is a separate part. Each rear wheel takes one shaft of its own.
This axle is a direct-fit replacement for the 2004-2006 BMW X3.
Fit and size
Build and materials
One rear left CV axle shaft and one axle nut.
Interchange: 60-9407
304671 · NCV27000 · 33217529917
This part cross-references / interchanges with the following part numbers:
Is the TrakMotive BM-8109 the right CV axle for a 2004-2006 BMW X3?
Yes. TrakMotive BM-8109 is a rear left CV axle shaft for the 2004-2006 BMW X3. The rear right side takes its own separate axle.
Does this TrakMotive CV axle shaft come with the axle nut?
Yes. The axle nut is included, with an M27x1.5 thread, a 36 mm hex and stake locking.
How long is the BM-8109 axle shaft?
TrakMotive BM-8109 has an overall compressed length of 629 mm (24.76 in), with 30 splines on the outboard end.
Does this rear left axle come with the ABS tone ring?
Yes. This axle has a window-type ABS tone ring with 48 teeth included.
Does TrakMotive BM-8109 replace the NCV27000 axle?
Yes. NCV27000 is listed as a cross-reference number for TrakMotive BM-8109, a rear left CV axle shaft.
