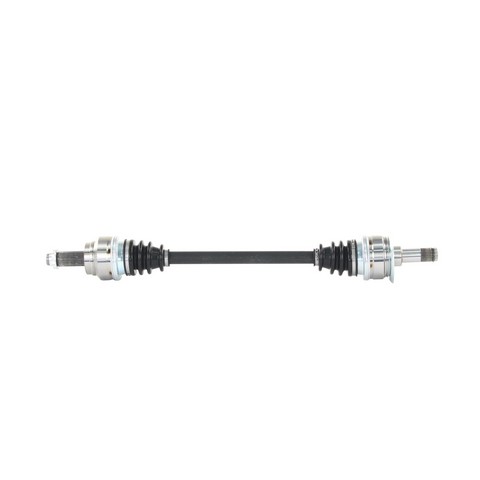

TrakMotive BM-8114 rear CV axle shaft for the 2007-2018 BMW X5 and other vehicles sends drive power to the rear wheel. Its two joints let the shaft keep turning the wheel as the suspension moves.
- Neoprene boots on both the inboard and outboard joints
- Male inboard joint with 27 splines
- Conventional outboard joint with 30 splines
- Axle nut included, with stake locking
Quick facts
- Part: TrakMotive BM-8114 CV axle shaft
- Fits: 2007-2018 BMW X5 and other vehicles
- Position: Rear
- Condition: New
Clicking when turning, grease flung around the wheel from a split boot, or vibration under acceleration can mean a worn axle shaft. Before you replace it, rule out a worn wheel bearing or an out-of-balance tire, since either can make similar noises and shakes.
Fits
This shaft fits the 2007-2018 BMW X5 and the 2015-2017 BMW X6. The listing is one shaft, and these vehicles take two, one on each side of the rear axle, so order two and fit them together.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Overall compressed length: 819 mm (32.22 in)
- Splines: 27 inboard, 30 outboard
- Axle nut: M27x1.5 thread, 36 mm hex
Build and materials
- Joint types: male inboard, conventional outboard
- Boot material: neoprene, inboard and outboard
- Axle nut locking: stake, nut included
- ABS tone ring: not included
- Condition: New
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft with its axle nut. The ABS tone ring is not included.
Interchange: 60-9418
NCV27023 · NCV27032 · NCV28003K · PR27023 · 33207564126 · 33207564127 · 33207568471 · 33208603102 · 33208609838
This part cross-references / interchanges with the following part numbers:
60-9418, NCV27023, NCV27032, NCV28003K, PR27023, 33207564126, 33207564127, 33207568471, 33208603102, 33208609838, BM-8114
Frequently Asked Questions
Will the BM-8114 rear axle shaft fit a 2015-2017 BMW X6?
Yes. TrakMotive BM-8114 is a rear CV axle shaft for the 2015-2017 BMW X6, and it also fits the 2007-2018 BMW X5.
Does this TrakMotive CV axle come with the axle nut?
Yes. TrakMotive BM-8114 includes the axle nut, which has an M27x1.5 thread and a 36 mm hex. The ABS tone ring is not included.
How many splines does this TrakMotive CV axle shaft have?
The male inboard joint has 27 splines and the outboard end has 30. Overall compressed length is 819 mm (32.22 in).
What does a split boot on a rear CV axle shaft mean for the joint?
A split boot lets grease out and dirt in, which can wear the joint; clicking on turns or vibration under acceleration can follow. Have it checked promptly rather than driving on it.
Does the BM-8114 axle shaft replace part number 33207564126?
Yes. 33207564126 is one of the numbers on the Interchange line for TrakMotive BM-8114.
