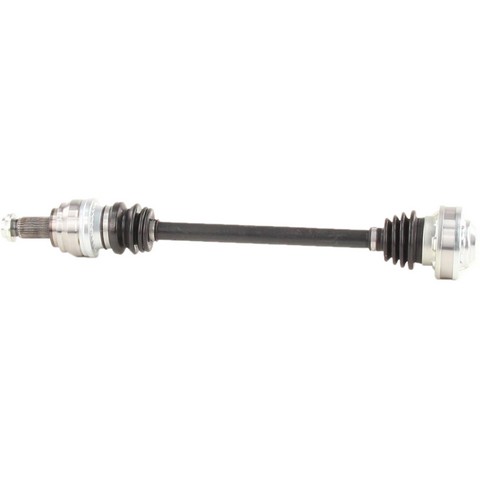

TrakMotive BM-8754 rear right CV axle shaft for the 2007-2013 BMW 328i and other vehicles carries drive torque to the rear right wheel. It is meant to replace a rear right axle whose joints or boots have worn out.
- Bolt-on inboard joint with a conventional outboard joint
- Neoprene boots on both the inboard and outboard joints
- Stake-locked axle nut included with the axle
- 30-spline outboard shaft end
Quick facts
- Part: TrakMotive BM-8754 CV axle shaft
- Fits: 2007-2013 BMW 328i and other vehicles
- Position: Rear right
- Condition: New
Clicking on turns, grease flung around the wheel from a split boot, or vibration can mean a CV axle is wearing out, though other suspension and drivetrain parts can make similar noises. With the engine off, look over both boots for splits or thrown grease before you decide the axle is the problem.
Fits
The fitment covers a wide range of BMW models. Beyond the car named at the top, it includes the 2009-2013 BMW 328i xDrive and the 2008-2013 BMW 335i, and one axle goes in the rear right position. If your BMW is not named here, look up its year and model in the "Vehicles it fits" section. This listing is one axle for the rear right; the rear left axle on the same car is a separate part, and the pair is normally done together.
Specifications
Fit and size
- Position: Rear right
- Quantity per application: 1
- Overall compressed length: 672 mm (26.46 in)
- Axle nut thread size: M27x1.5
- Axle nut hex size: 36 mm (1.4 in)
- Axle nut height and length: 16 mm and 41 mm (0.63 in and 1.61 in)
Build and materials
- ABS tone ring: not included
- Condition: New
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One rear right CV axle shaft and one axle nut.
Interchange: 66-9354
304473 · 304474 · 304483 · NCV27925 · 78108
This part cross-references / interchanges with the following part numbers:
66-9354, 304473, 304474, 304483, NCV27925, 78108, BM-8754
Frequently Asked Questions
Is the TrakMotive BM-8754 right for a 2008-2013 BMW 335i?
Yes. The TrakMotive BM-8754 rear right CV axle shaft is listed for the 2008-2013 BMW 335i. For other BMW models, look up your year and model in the "Vehicles it fits" section.
Does this TrakMotive CV axle come with the axle nut?
Yes. The TrakMotive BM-8754 comes with its axle nut, which has an M27x1.5 thread, a 36 mm hex and stake locking.
Does this rear right CV axle shaft include the ABS tone ring?
No. The ABS tone ring is not included with this axle shaft.
How long is a rear right CV axle shaft like the BM-8754?
The BM-8754 measures 672 mm (26.46 in) in overall compressed length.
How can I spot a failing boot on a CV axle shaft?
A torn neoprene boot shows a split or grease flung around the joint, and clicking on turns can follow. Have the axle checked promptly if you see or hear either.
